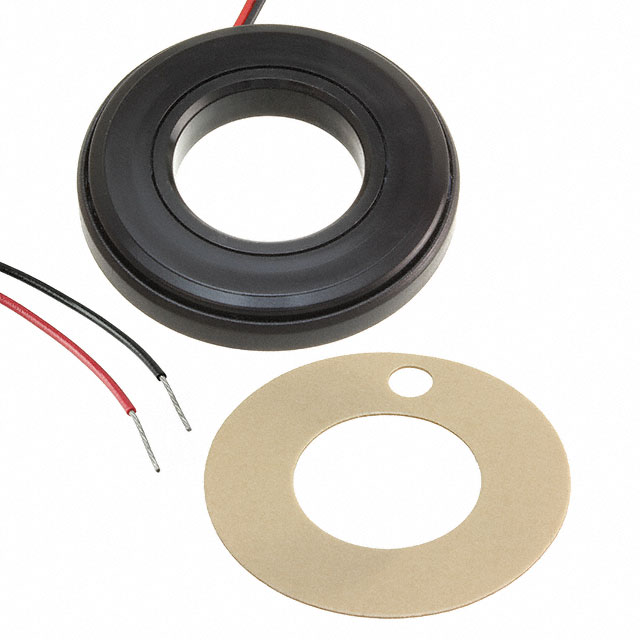

QH22028GC
ActiveAPEM
LED PANEL INDICATOR, GREEN, 22MM, 24VDC ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
QH22028GC
ActiveAPEM
LED PANEL INDICATOR, GREEN, 22MM, 24VDC ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QH22028GC |
|---|---|
| Current [Max] | 20 mA |
| Current [Min] | 4.2 mA |
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 42 mm |
| Lens Style | Ring with Domed Top |
| Lens Transparency | Clear |
| Panel Cutout Dimensions | 0.866 in |
| Panel Cutout Dimensions | 22 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Voltage [Max] | 26.4 V |
| Voltage [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 44.41 | |
Description
General part information
QH22028 Series
LED Panel Indicator Green Clear 12V ~ 26.4V 4.2 ~ 20mA Wire Leads - 7.87" (200.00mm)
