EN3L3MCX
ActiveSwitchcraft Inc.

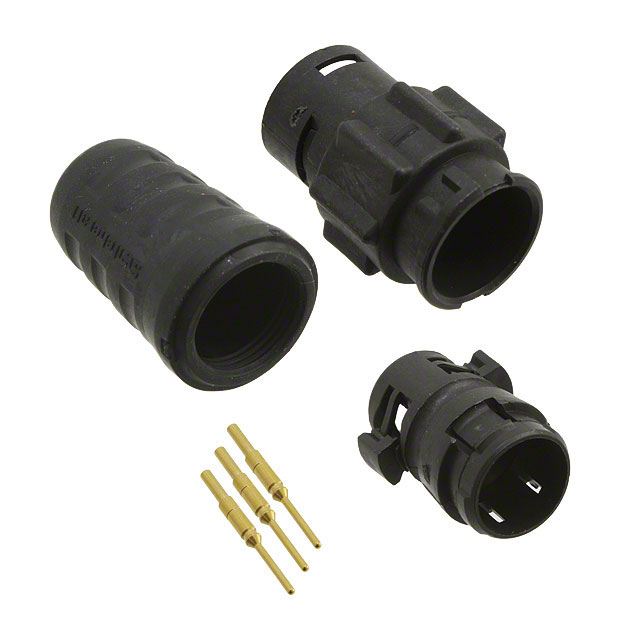

CONN RCPT MALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3L3MCX
ActiveSwitchcraft Inc.
CONN RCPT MALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3L3MCX | EN3L3M Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening [diameter] | 6.73 mm, 4.06 mm | 4.06 - 6.73 mm |
| Cable Opening [diameter] | 0.265 in, 0.16 in | 0.16 - 0.265 in |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3L3M Series
CONN RCPT MALE 3POS SOLDER CUP
| Part | Shielding | Color | Ingress Protection | Current Rating (Amps) | Primary Material | Applications | Orientation | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Voltage Rating | Fastening Type | Connector Type | Contact Material | Material Flammability Rating | Insert Material | Cable Opening [diameter] | Cable Opening [diameter] | Contact Finish - Mating | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3L3M16KX | Unshielded | Black | IP66/IP68 | 13 A | Plastic | General Purpose, Instrumentation, Marine, Medical | Keyed | Free Hanging (In-Line) | 65 °C | -40 °C | Thermoplastic | 250 VAC | Bayonet Lock | Male Pins, Receptacle | Copper Alloy | UL94 V-0 | Elastomer | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Gold | Backshell, Cable Clamp | |
Switchcraft Inc. EN3L3M16X | Unshielded | Black | IP66/IP68 | 13 A | Plastic | General Purpose, Instrumentation, Marine, Medical | Keyed | Free Hanging (In-Line) | 65 °C | -40 °C | Thermoplastic | 250 VAC | Bayonet Lock | Male Pins, Receptacle | Copper Alloy | UL94 V-0 | Elastomer | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Gold | Backshell, Cable Clamp | |
Switchcraft Inc. EN3L3MCKX | Unshielded | Black | IP66/IP68 | 7.5 A | Plastic | General Purpose, Instrumentation, Marine, Medical | Keyed | Free Hanging (In-Line) | 65 °C | -40 °C | Thermoplastic | 250 VAC | Bayonet Lock | Male Pins, Receptacle | Copper Alloy | UL94 V-0 | Elastomer | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Gold | Backshell, Cable Clamp | Crimp |
Switchcraft Inc. EN3L3MCX | Unshielded | Black | IP66/IP68 | 7.5 A | Plastic | General Purpose, Instrumentation, Marine, Medical | Keyed | Free Hanging (In-Line) | 65 °C | -40 °C | Thermoplastic | 250 VAC | Bayonet Lock | Male Pins, Receptacle | Copper Alloy | UL94 V-0 | Elastomer | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Gold | Backshell, Cable Clamp | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.17 | |
| 10 | $ 6.46 | |||
| 25 | $ 6.08 | |||
| 50 | $ 5.93 | |||
| 100 | $ 5.77 | |||
| 300 | $ 5.15 | |||
| 500 | $ 4.83 | |||
| 1000 | $ 4.81 | |||
Description
General part information
EN3L3M Series
3 Position Circular Connector Receptacle, Male Pins Crimp
Documents
Technical documentation and resources
