EN3L3M16X

Active

Switchcraft Inc.

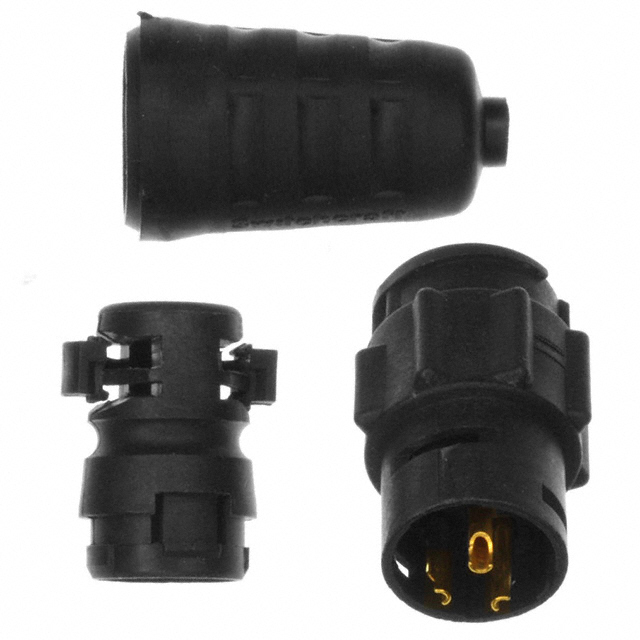

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3L3M16X

Active

Switchcraft Inc.

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.10
		10	$ 8.53
		25	$ 7.71
		50	$ 7.15
		100	$ 6.65
		250	$ 6.06
		500	$ 6.01

Description

General part information

EN3L3M Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3L3M16X	EN3L3M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3L3M Series

CONN RCPT MALE 3POS SOLDER CUP

Part	Shielding	Color	Ingress Protection	Current Rating (Amps)	Primary Material	Applications	Orientation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Voltage Rating	Fastening Type	Connector Type	Contact Material	Material Flammability Rating	Insert Material	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish - Mating	Features	Termination
Switchcraft Inc. EN3L3M16KX	Unshielded	Black	IP66/IP68	13 A	Plastic	General Purpose, Instrumentation, Marine, Medical	Keyed	Free Hanging (In-Line)	65 °C	-40 °C	Thermoplastic	250 VAC	Bayonet Lock	Male Pins, Receptacle	Copper Alloy	UL94 V-0	Elastomer	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Gold	Backshell, Cable Clamp
Switchcraft Inc. EN3L3M16X	Unshielded	Black	IP66/IP68	13 A	Plastic	General Purpose, Instrumentation, Marine, Medical	Keyed	Free Hanging (In-Line)	65 °C	-40 °C	Thermoplastic	250 VAC	Bayonet Lock	Male Pins, Receptacle	Copper Alloy	UL94 V-0	Elastomer	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Gold	Backshell, Cable Clamp
Switchcraft Inc. EN3L3MCKX	Unshielded	Black	IP66/IP68	7.5 A	Plastic	General Purpose, Instrumentation, Marine, Medical	Keyed	Free Hanging (In-Line)	65 °C	-40 °C	Thermoplastic	250 VAC	Bayonet Lock	Male Pins, Receptacle	Copper Alloy	UL94 V-0	Elastomer	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Gold	Backshell, Cable Clamp	Crimp
Switchcraft Inc. EN3L3MCX	Unshielded	Black	IP66/IP68	7.5 A	Plastic	General Purpose, Instrumentation, Marine, Medical	Keyed	Free Hanging (In-Line)	65 °C	-40 °C	Thermoplastic	250 VAC	Bayonet Lock	Male Pins, Receptacle	Copper Alloy	UL94 V-0	Elastomer	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Gold	Backshell, Cable Clamp	Crimp
