833-038-556-203

Active

EDAC Inc.

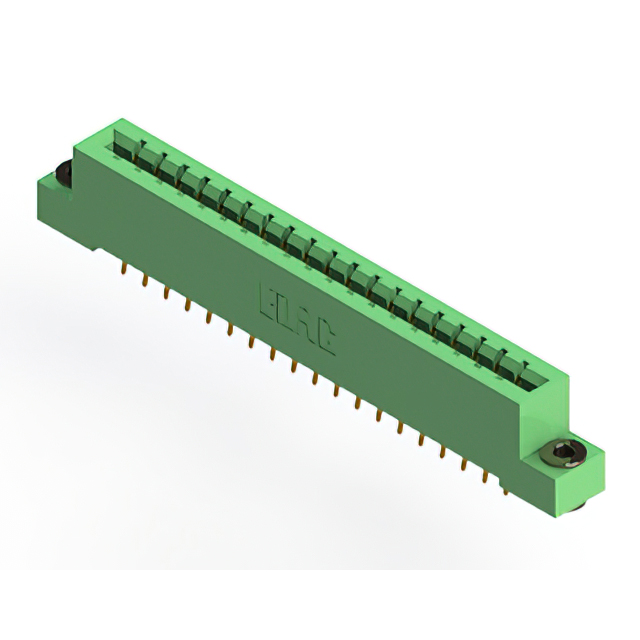

CARD EDGE CONNECTOR, 38 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.116, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

833-038-556-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, 38 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.116, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	833-038-556-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	38
Number of Positions/Bay/Row [custom]	19
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

833-038 Series

...

Part	Gender	Mounting Type	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Read Out	Color	Material - Insulation	Number of Positions	Card Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Termination Rows	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Flange Feature	Contact Material	Features	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 833-038-524-208	Female	Through Hole	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Dual	Green	Diallyl Phthalate (DAP)	38	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	2	2	10 Áin	0.25 Ám	Gold	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy
EDAC Inc. 833-038-520-201	Female	Through Hole	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Dual	Green	Diallyl Phthalate (DAP)	38	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	2	2	10 Áin	0.25 Ám	Gold		Copper Alloy
EDAC Inc. 833-038-500-207	Female	Through Hole	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Dual	Green	Diallyl Phthalate (DAP)	38	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	2	2	10 Áin	0.25 Ám	Gold	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy
EDAC Inc. 833-038-556-203	Female	Board Edge Straddle Mount	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Dual	Green	Diallyl Phthalate (DAP)	38	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	2	2	10 Áin	0.25 Ám	Gold	Floating Bobbin Flush Mount	Copper Alloy	Card Extender	0.116 in	2.95 mm
EDAC Inc. 833-038-544-804	Female	Through Hole	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Dual	Green	Diallyl Phthalate (DAP)	38	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	2	2	10 Áin	0.25 Ám	Gold	Top Mount Opening Unthreaded	Copper Alloy		0.156 in	3.96 mm
EDAC Inc. 833-038-520-803	Female	Through Hole	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Dual	Green	Diallyl Phthalate (DAP)	38	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	2	2	10 Áin	0.25 Ám	Gold	Floating Bobbin Top Mount Opening	Copper Alloy		0.116 in	2.95 mm
EDAC Inc. 833-038-500-803	Female	Through Hole	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Dual	Green	Diallyl Phthalate (DAP)	38	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	2	2	10 Áin	0.25 Ám	Gold	Floating Bobbin Top Mount Opening	Copper Alloy		0.116 in	2.95 mm
EDAC Inc. 833-038-558-607	Female	Through Hole Right Angle	38	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	Green	Diallyl Phthalate (DAP)	38	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	1	1	10 Áin	0.25 Ám	Gold	M3 Threaded Insert Top Mount Opening	Copper Alloy
EDAC Inc. 833-038-558-612	Female	Through Hole Right Angle	38	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Single	Green	Diallyl Phthalate (DAP)	38	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	1	1	10 Áin	0.25 Ám	Gold	Side Mount Opening Unthreaded	Copper Alloy				3.25 mm	0.128 in
EDAC Inc. 833-038-555-803	Female	Board Edge Straddle Mount	19	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Dual	Green	Diallyl Phthalate (DAP)	38	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Cantilever	2	2	10 Áin	0.25 Ám	Gold	Floating Bobbin Top Mount Opening	Copper Alloy	Card Extender	0.116 in	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 70.17
Newark	Each	1	$ 81.00
		100	$ 61.77
		250	$ 53.59
		500	$ 48.95
		1000	$ 40.38

Description

General part information

833-038 Series

38 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
