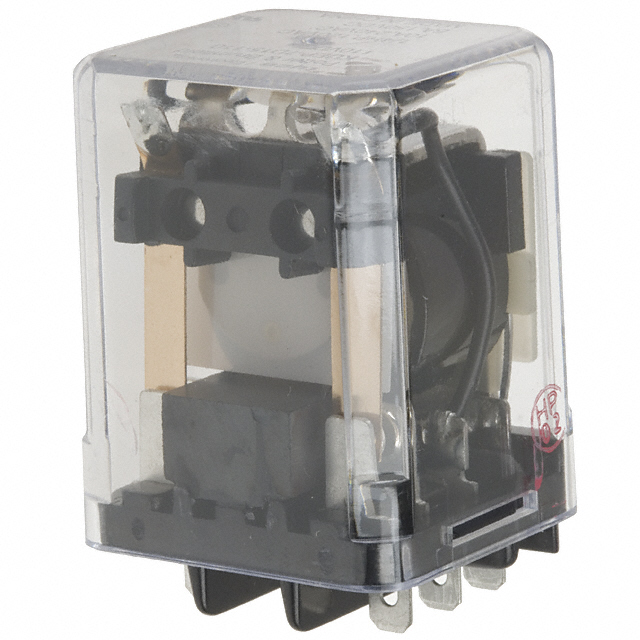

KUEP-7D15-110
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPST 10A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KUEP-7D15-110
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPST 10A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KUEP-7D15-110 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 16 mA |
| Coil Insulation | Class B |
| Coil Resistance | 6.72 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 110 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 1500 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 82.5 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 150 VDC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.89 | |
| 10 | $ 47.40 | |||
| 25 | $ 44.90 | |||
| 50 | $ 42.41 | |||
| 100 | $ 39.92 | |||
| 250 | $ 37.42 | |||
Description
General part information
KUEP-7D Series
General Purpose Relay DPST-NO (2 Form A) 110VDC Coil Socketable
