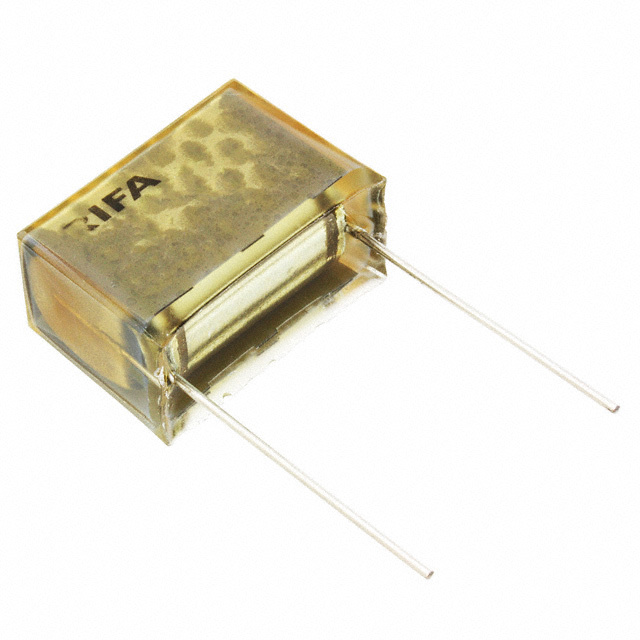

PMR209ME6470M047R30
ActiveSAFETY CAPACITOR, METALLIZED PAPER, RADIAL BOX - 2 PIN, 0.47 ΜF, ± 20%, X2, THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
PMR209ME6470M047R30
ActiveSAFETY CAPACITOR, METALLIZED PAPER, RADIAL BOX - 2 PIN, 0.47 ΜF, ± 20%, X2, THROUGH HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMR209ME6470M047R30 |
|---|---|
| Applications | General Purpose |
| ESD Protection | False |
| Filter Order | 1st |
| Height [z] | 0.866 in |
| Height [z] | 22 mm |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Resistance - Channel (Ohms) | 47 Ohms |
| Size / Dimension [x] | 1.201 in |
| Size / Dimension [x] | 30.5 mm |
| Size / Dimension [y] | 0.602 in |
| Size / Dimension [y] | 15.3 mm |
| Technology | RC |
| Type | Low Pass |
| Values | 0.47 µF, 47 Ohms |
| Voltage - Rated | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PMR209ME Series
The PMR209 Series are radial leaded, class X2 RC units. These are single layer metalized paper with integrated resistor for use in DC and AC application. The impregnated paper ensures excellent stability by giving outstanding reliability properties in applications having continuous operation. PMR209 series ensures long life even when subjected to frequent overvoltage’s. These RC units have excellent self healing properties and good resistance to ionisation due to impregnated dielectric.
