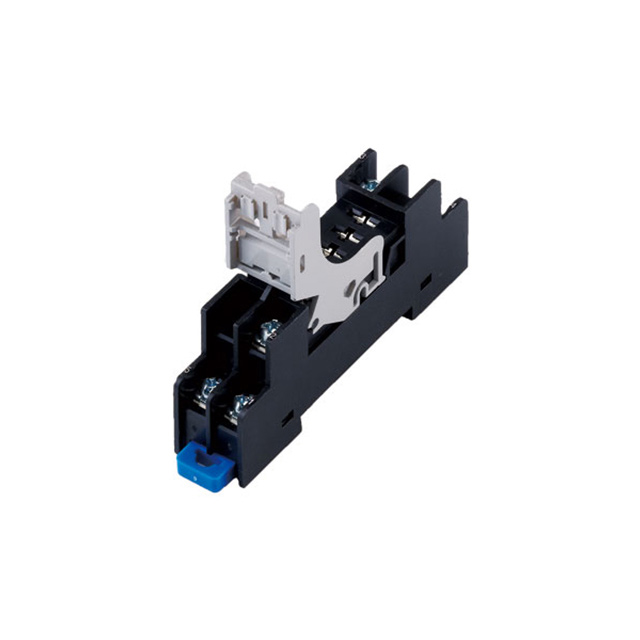

SJ1S-05BW

Active

IDEC Corporation

RELAY SOCKET, DIN RAIL, SCREW, 5 PINS, 12 A, 250 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SJ1S-05BW

Active

IDEC Corporation

RELAY SOCKET, DIN RAIL, SCREW, 5 PINS, 12 A, 250 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJ1S-05BW	SJ1S Series

For Use With/Related Products	RJ Series	RJ Series
Mounting Type	DIN Rail	DIN Rail
Termination Style	Screw Terminal	Screw Terminal
Type	Socket	Socket

SJ1S Series

RELAY SOCKET, DIN RAIL, SCREW, 5 PINS, 12 A, 250 V

Part	Type	For Use With/Related Products	Termination Style	Mounting Type
IDEC Corporation SJ1S-07LW	Socket	RJ Series	Screw Terminal	DIN Rail
IDEC Corporation SJ1S-05BW	Socket	RJ Series	Screw Terminal	DIN Rail

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.36
		10	$ 4.68
		25	$ 4.44
		50	$ 4.26
		100	$ 4.09
		250	$ 3.88
		500	$ 3.72
		1000	$ 3.58
Newark	Each	1	$ 5.58
		10	$ 5.42
		25	$ 5.30
		50	$ 5.20
		100	$ 5.09
		250	$ 4.92

Description

General part information

SJ1S Series

The SJ1S-05BW is a 250V 12A 5-pin Socket with standard DIN rail mount, used with RJ1S (Std) series slim power relays. M3 screw with captive wire clamp and 2 to 14AWG wire size.
