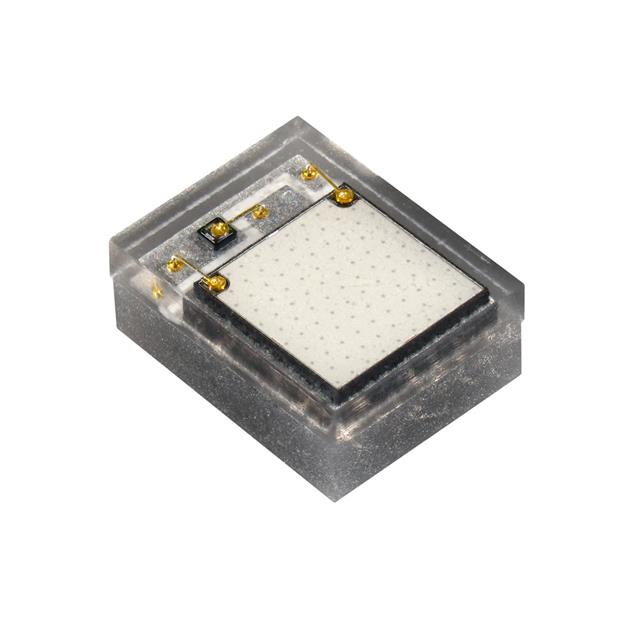

XEGARY-H0-0000-000-000000K2002

Cree LED

LED SINGLE CHIP ROYAL BLUE 460NM 3A 3-PIN SMD T/R

Search across all available documentation for this part.

Cree LED

LED SINGLE CHIP ROYAL BLUE 460NM 3A 3-PIN SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	XEGARY-H0-0000-000-000000K2002

Color	Royal Blue
Current - Max [Max]	3 A
Current - Test	1 A
Height - Seated (Max) [Max] [z]	1.13 mm
Height - Seated (Max) [Max] [z]	0.044 "
Luminous Flux @ Current/Temperature	1400 mW
Mounting Type	Surface Mount
Package / Case	3-SMD, No Lead
Size / Dimension [x]	2.05 mm
Size / Dimension [x]	0.081 in
Size / Dimension [y]	1.6 mm
Size / Dimension [y]	0.063 in
Supplier Device Package	3-SMD
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	3.05 V
Wavelength	455 nm

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Luminous Flux @ Current/Temperature	Package / Case	Voltage - Forward (Vf) (Typ)	Mounting Type	Color	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Wavelength	Supplier Device Package	Current - Test
Cree LED XEGARY-H0-0000-000-000000K2002	1.13 mm	0.044 "	1400 mW	3-SMD No Lead	3.05 V	Surface Mount	Royal Blue	3 A	2.05 mm	1.6 mm	0.081 in	0.063 in	125 °	455 nm	3-SMD	1 A
Cree LED XEGARY-H2-0000-000-000000K4001

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.25

General part information

LED Lighting Color XLamp® XE-G Royal Blue 455nm 3-SMD, No Lead
