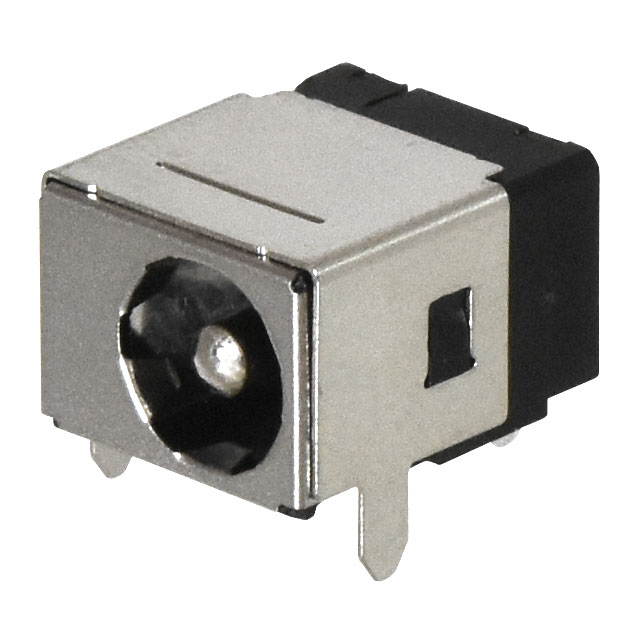

PJ-083AH
ActiveCUI Devices
PWR JACK 2.0X5.9MM RT THROUGH HO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-083AH
ActiveCUI Devices
PWR JACK 2.0X5.9MM RT THROUGH HO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-083AH |
|---|---|
| Actual Diameter [diameter] | 5.9 mm, 2 mm |
| Actual Diameter [diameter] | 0.232 in, 0.079 in |
| Body Color | Silver, Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Industry Recognized Mating Diameter [diameter] | 0.079 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 2 mm, 5.5 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth [x] | 8.2 mm |
| Mating Length/Depth [x] | 0.323 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.53 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.19 | |||
| Tape & Reel (TR) | 400 | $ 1.08 | ||
| 800 | $ 0.96 | |||
| 1200 | $ 0.85 | |||
| 2000 | $ 0.82 | |||
| 2800 | $ 0.79 | |||
| 10000 | $ 0.74 | |||
Description
General part information
PJ-083 Series
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
Documents
Technical documentation and resources
