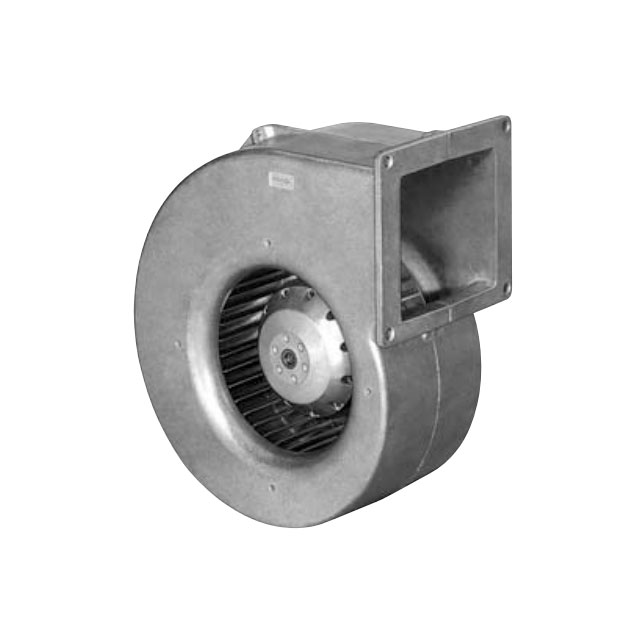

G2E140-AL40-01

Active

ebm-papst Inc.

FAN: AC; BLOWER; 230VAC; 227X248X130MM; 385M3/H; 63DBA; BALL; IP44

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN: AC; BLOWER; 230VAC; 227X248X130MM; 385M3/H; 63DBA; BALL; IP44

Technical Specifications

Parameters and characteristics for this part

Specification	G2E140-AL40-01

Approval Agency	CCC, EAC, CE
Bearing Type	Ball
Current Rating (Amps)	0.64 A
Fan Type	Blower, Centrifugal
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	145 W
RPM	1700 RPM
Size / Dimension [x]	226.8 mm
Size / Dimension [y]	247.5 mm
Static Pressure	100 Pa
Static Pressure	0.401 in H2O
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Width [y]	130 mm

Part	Width [y]	Operating Temperature	Static Pressure	Static Pressure	Termination	Power (Watts)	Material - Blade	Voltage - Rated	Approval Agency	Material - Frame	Bearing Type	RPM	Ingress Protection	Weight	Weight	Fan Type	Features	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]
ebm-papst Inc. G2E140-NS38-01	100 mm	35 °C	49.9 Pa	0.2 in H2O	4 Wire Leads	115 W	Polypropylene (PP)	230 VAC	CCC CE GOST	Plastic	Ball	1850 RPM	IP44	1.6 kg	3.5 lbs	Blower Centrifugal	Capacitor Thermal Overload Protection (TOP)	Rectangular/Rounded	277 mm	237 mm
ebm-papst Inc. G2E140-AL40-01	130 mm		100 Pa	0.401 in H2O	4 Wire Leads	145 W	Steel	230 VAC	CCC CE EAC	Aluminum	Ball	1700 RPM	IP44			Blower Centrifugal	Capacitor Thermal Overload Protector (TOP)			226.8 mm	247.5 mm	0.64 A	-25 °C	40 °C	40 °C	-25 °C
ebm-papst Inc. G2E140-AE77-01	130 mm				4 Wire Leads	115 W	Steel	230 VAC	CCC CE EAC	Aluminum	Ball	1500 RPM	IP44			Blower Centrifugal	Capacitor Thermal Overload Protector (TOP)			226.8 mm	247.5 mm	0.51 A	-25 °C	35 °C	35 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 230VAC Rectangular/Rounded - 226.8mm L x 247.5mm H Ball 4 Wire Leads
