M50-3532042
ActiveHarwin Inc.

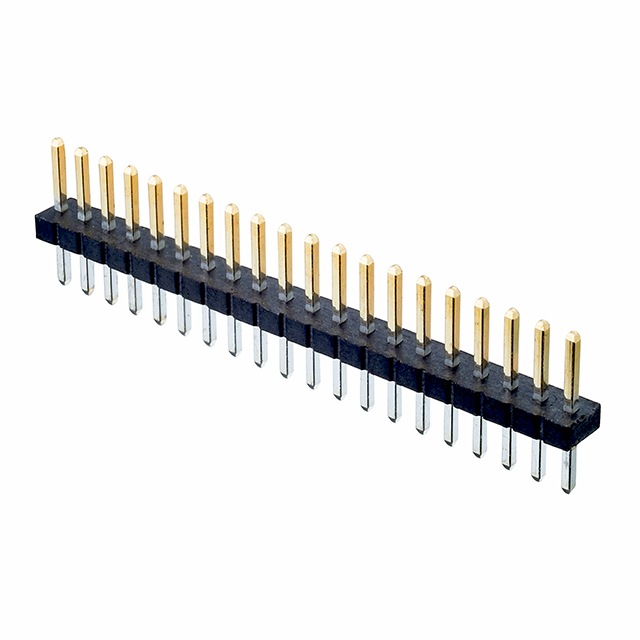

BTB CONN, HEADER, 20POS, 1ROWS, 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
M50-3532042
ActiveHarwin Inc.
BTB CONN, HEADER, 20POS, 1ROWS, 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3532042 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 3 mm |
| Contact Length - Mating | 0.118 in |
| Contact Length - Post | 0.091 in |
| Contact Length - Post | 2.3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.039 " |
| Insulation Height | 1 mm |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Mated Stacking Heights | 3.1 mm, 4.6 mm, 5.4 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 6.3 mm |
| Overall Contact Length [x] | 0.248 in |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
M50-353 Series
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Insulation Material | Connector Type | Fastening Type | Material Flammability Rating | Termination | Contact Type | Number of Rows | Contact Finish - Post | Insulation Color | Contact Length - Post | Contact Length - Post | Mated Stacking Heights | Contact Shape | Mounting Type | Contact Finish - Mating | Number of Positions | Shrouding | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Overall Contact Length [x] | Overall Contact Length | Number of Positions Loaded | Contact Material | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 2.54 µm | 100 µin | 1 A | Nylon 9T Polyamide (PA9T) | Header | Push-Pull | UL94 V-0 | Solder | Male Pin | 1 | Tin | Black | 0.091 in | 2.3 mm | 3.1 mm 4.6 mm 5.4 mm | Square | Through Hole | Gold | 6 | Unshrouded | 3 mm | 0.118 in | 0.05 in | 1.27 mm | 0.248 in | 6.3 mm | All | Brass | 0.039 " | 1 mm | -40 °C | 105 ░C |
Harwin Inc. | 2.54 µm | 100 µin | 1 A | Nylon 9T Polyamide (PA9T) | Header | Push-Pull | UL94 V-0 | Solder | Male Pin | 1 | Tin | Black | 0.091 in | 2.3 mm | 3.1 mm 4.6 mm 5.4 mm | Square | Through Hole | Gold | 2 | Unshrouded | 3 mm | 0.118 in | 0.05 in | 1.27 mm | 0.248 in | 6.3 mm | All | Brass | 0.039 " | 1 mm | -40 °C | 105 ░C |
Harwin Inc. | 2.54 µm | 100 µin | 1 A | Nylon 9T Polyamide (PA9T) | Header | Push-Pull | UL94 V-0 | Solder | Male Pin | 1 | Tin | Black | 0.091 in | 2.3 mm | 3.1 mm 4.6 mm 5.4 mm | Square | Through Hole | Gold | 20 | Unshrouded | 3 mm | 0.118 in | 0.05 in | 1.27 mm | 0.248 in | 6.3 mm | All | Brass | 0.039 " | 1 mm | -40 °C | 105 ░C |
Harwin Inc. | 2.54 µm | 100 µin | 1 A | Nylon 9T Polyamide (PA9T) | Header | Push-Pull | UL94 V-0 | Solder | Male Pin | 1 | Tin | Black | 0.091 in | 2.3 mm | 3.1 mm 4.6 mm 5.4 mm | Square | Through Hole | Gold | 4 | Unshrouded | 3 mm | 0.118 in | 0.05 in | 1.27 mm | 0.248 in | 6.3 mm | All | Brass | 0.039 " | 1 mm | -40 °C | 105 ░C |
Harwin Inc. | 2.54 µm | 100 µin | 1 A | Nylon 9T Polyamide (PA9T) | Header | Push-Pull | UL94 V-0 | Solder | Male Pin | 1 | Tin | Black | 0.091 in | 2.3 mm | 3.1 mm 4.6 mm 5.4 mm | Square | Through Hole | Gold | Unshrouded | 3 mm | 0.118 in | 0.05 in | 1.27 mm | 0.248 in | 6.3 mm | All | Brass | 0.039 " | 1 mm | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M50-353 Series
Connector Header Through Hole 20 position 0.050" (1.27mm)
