HW-36-08-S-S-400-SM

Active

Samtec Inc.

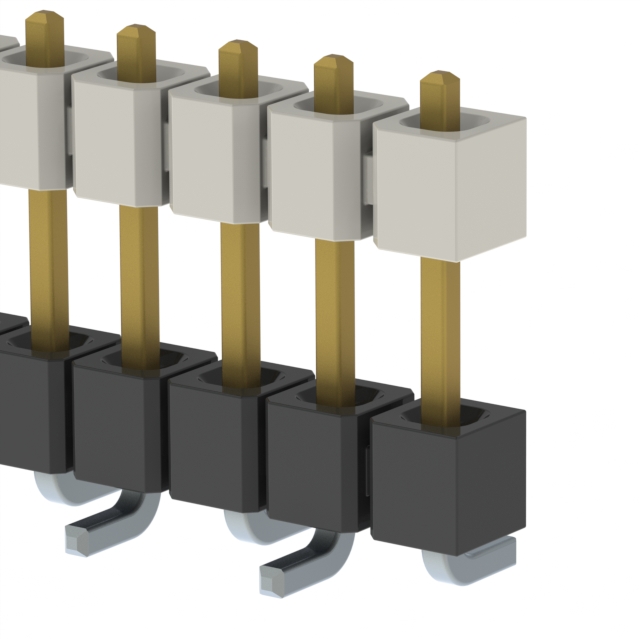

CONN BOARD STACKER HDR 36 POS 2.54MM SOLDER ST TOP ENTRY SMD TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BOARD STACKER HDR 36 POS 2.54MM SOLDER ST TOP ENTRY SMD TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	HW-36-08-S-S-400-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30 µin
Contact Finish Thickness - Post (Mating)	0.76 µm
Length - Overall Pin	11.811 mm
Length - Overall Pin	0.465 in
Length - Post (Mating) [x]	1.651 mm
Length - Post (Mating) [x]	0.065 in
Length - Stack Height [x]	0.4 in
Length - Stack Height [x]	10.16 mm
Mounting Type	Surface Mount
Number of Positions	36
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Termination	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Number of Positions	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]
Samtec Inc. HW-36-08-S-S-400-SM	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	Solder	Surface Mount	30 µin	0.76 µm	Black	36	1	0.4 in	10.16 mm	1.651 mm	0.065 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
