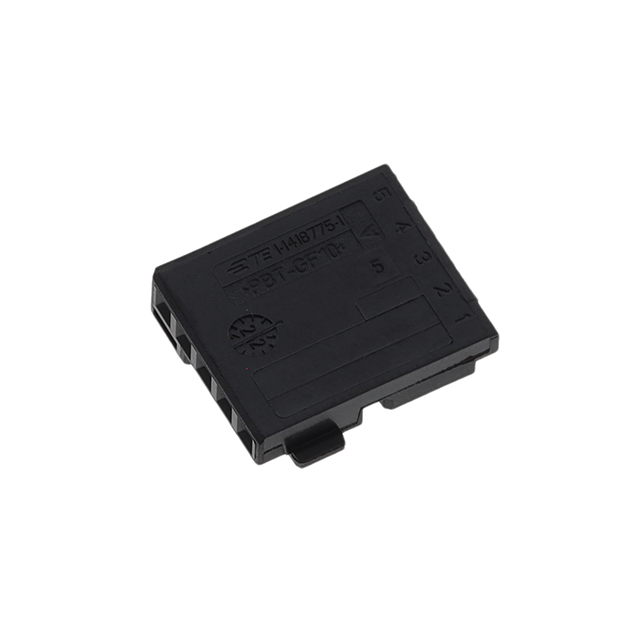

1-1418775-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 5POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 5POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1-1418775-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

CONN RCPT HSG 5POS 2.54MM

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Termination	Insulation Material	Color	Pitch [x]	Pitch [x]	Contact Type	Number of Rows	Mounting Type
TE Connectivity AMP Connectors 1-1418775-1	Receptacle	-40 °C	80 C	Contacts Not Included	Crimp	Polybutylene Terephthalate (PBT), Glass Filled	Black	2.54 mm	0.1 in	Female Socket	1	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
