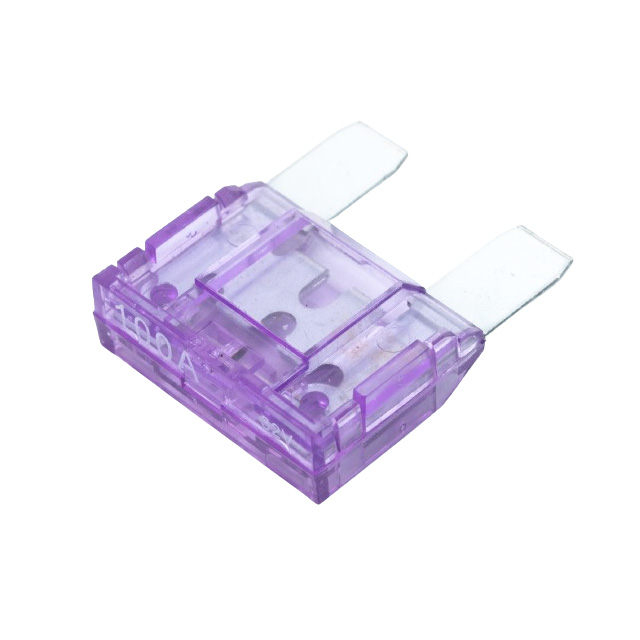

APX-I-100A

Active

OptiFuse

FUSE AUTO 100A 32VDC BLADE MAX

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 100A 32VDC BLADE MAX

Technical Specifications

Parameters and characteristics for this part

Specification	APX-I-100A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Violet
Current Rating (Amps)	100 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Max
Response Time	Fast Blow
Size / Dimension [x]	29.5 mm
Size / Dimension [x]	1.161 "
Size / Dimension [y]	0.358 in
Size / Dimension [y]	9.1 mm
Size / Dimension [z]	0.862 "
Size / Dimension [z]	21.9 mm
Voltage Rating - DC	32 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Response Time	Approval Agency	Package / Case	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Fuse Type	Color	Mounting Type	Voltage Rating - DC
OptiFuse APX-I-20A	29.5 mm	0.862 "	0.358 in	9.1 mm	1.161 "	21.9 mm	Fast Blow	ISO SAE	Blade Max	20 A	1 kA	Automotive	Yellow	Requires Holder	32 V
OptiFuse APX-I-30A	29.5 mm	0.862 "	0.358 in	9.1 mm	1.161 "	21.9 mm	Fast Blow	ISO SAE	Blade Max	30 A	1 kA	Automotive	Green	Requires Holder	32 V
OptiFuse APX-I-40A	29.5 mm	0.862 "	0.358 in	9.1 mm	1.161 "	21.9 mm	Fast Blow	ISO SAE	Blade Max	40 A	1 kA	Automotive		Requires Holder	32 V
OptiFuse APX-I-100A	29.5 mm	0.862 "	0.358 in	9.1 mm	1.161 "	21.9 mm	Fast Blow	ISO SAE	Blade Max	100 A	1 kA	Automotive	Violet	Requires Holder	32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 A AC 32 V DC Fuse Automotive Requires Holder Blade, Max
