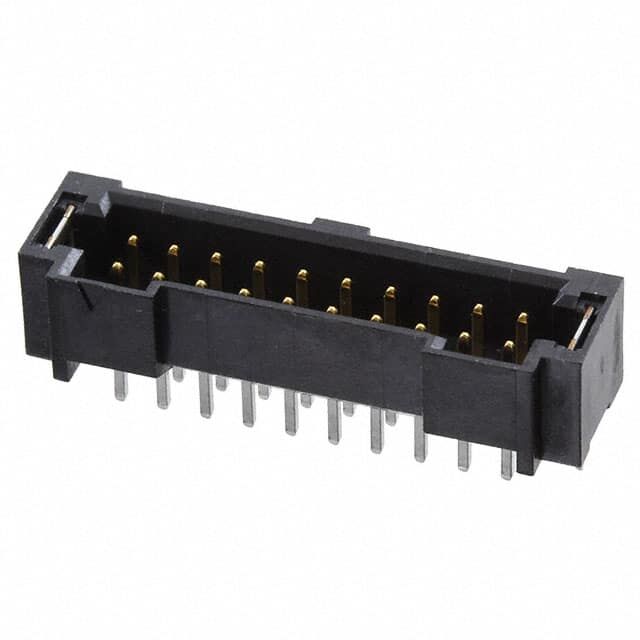

T2M-110-01-L-D-TH-WT - T2M-110-01-L-D-TH-WT

T2M-110-01-L-D-TH-WT

Active
Samtec Inc.

CONN HEADER VERT 20POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetT2M Datasheet+2
T2M-110-01-L-D-TH-WT - T2M-110-01-L-D-TH-WT

T2M-110-01-L-D-TH-WT

Active
Samtec Inc.

CONN HEADER VERT 20POS 2MM

Deep-Dive with AI

DocumentsDatasheetT2M Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationT2M-110-01-L-D-TH-WT
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Length - Post0.117 in
Contact Length - Post2.97 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3.8 A
Fastening TypePush-Pull
FeaturesSolder Retention
Insulation ColorBlack
Insulation Height5.8 mm
Insulation Height0.228 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions20
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Overall Contact Length0.302 in
Overall Contact Length7.67 mm
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder

T2M-110 Series

PartRow Spacing - MatingRow Spacing - MatingInsulation MaterialMounting TypeNumber of PositionsTerminationContact Finish - MatingInsulation ColorContact TypeFeaturesContact ShapeStyleNumber of RowsConnector TypeOperating Temperature [Min]Operating Temperature [Max]Fastening TypeShroudingPitch - Mating [x]Pitch - Mating [x]Contact Finish - PostCurrent Rating (Amps)Insulation HeightInsulation HeightContact MaterialContact Finish Thickness - MatingContact Finish Thickness - MatingNumber of Positions LoadedContact Length - PostContact Length - PostInsulation Height [z]Insulation Height [z]Overall Contact LengthOverall Contact Length
