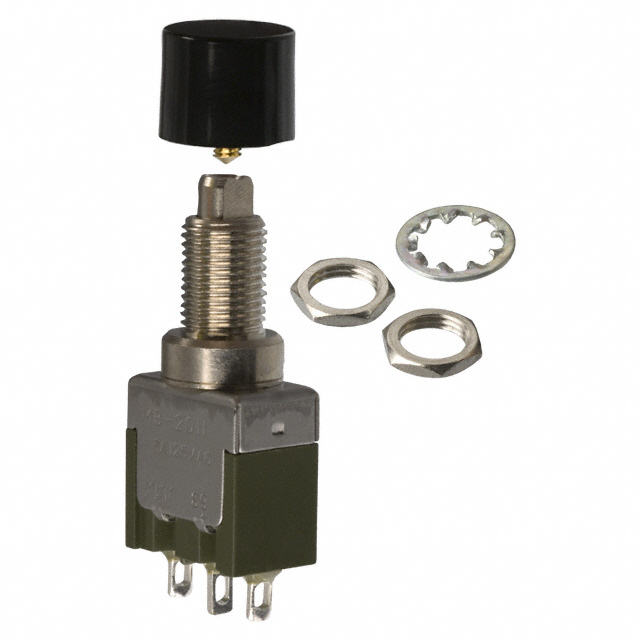

MB2011SS1W01-CA

Obsolete

NKK Switches

SWITCH PUSHBUTTON SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2011SS1W01-CA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MB2011S Series

...

Part	Actuator Marking	Circuit	Voltage Rating - DC	Mounting Type	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Termination Style	Mechanical Life	Type	Current Rating (Amps)	Color - Actuator/Cap	Voltage Rating - AC	Features	Panel Cutout Dimensions [diameter]	Actuator Type	Ingress Protection
NKK Switches MB2011SS1W01-CA	No Marking	SPDT	30 V	Panel Mount Rear	25000 Steps	-30 ░C	85 °C	On-Mom	Solder Lug	100000 Cycles	Standard	3 A 6 A	Black	125 V	Epoxy Sealed Terminals	6.5 mm	Button Round
NKK Switches MB2011SS2G30-CC	No Marking	SPDT	28 V	Through Hole Right Angle	50000 Cycles	-30 ░C	85 °C	On-Mom	PC Pin	100000 Cycles	Standard	0.4 VA	Red	28 V	Epoxy Sealed Terminals		Button Round
NKK Switches MB2011SD3G01-CC	No Marking	SPDT	28 V	Panel Mount Rear	50000 Cycles	-30 ░C	85 °C	On-Mom	Solder Lug		Standard	0.4 VA	Red	28 V	Epoxy Sealed Terminals	6.5 mm	Button Round	IP67 - Dust Tight Waterproof
NKK Switches MB2011SS1G01-BC	No Marking	SPDT	28 V	Panel Mount Rear	50000 Cycles	-30 ░C	85 °C	On-Mom	Solder Lug	100000 Cycles	Standard	0.4 VA	Red	28 V	Epoxy Sealed Terminals	6.5 mm	Button Round
NKK Switches MB2011SS1G03-BB	No Marking	SPDT	28 V	Panel Mount Rear	50000 Cycles	-30 ░C	85 °C	On-Mom	PC Pin	100000 Cycles	Standard	0.4 VA	White	28 V	Epoxy Sealed Terminals	6.5 mm	Button Round
NKK Switches MB2011SB1W01-4H-A	No Marking	SPDT	30 V	Panel Mount Rear	25000 Steps	-30 ░C	85 °C	On-Mom	Solder Lug	100000 Cycles	Standard	3 A 6 A		125 V	Epoxy Sealed Terminals	12.5 mm	Button Round
NKK Switches MB2011SB1W03-DA	No Marking	SPDT	30 V	Panel Mount Rear	25000 Steps	-30 ░C	85 °C	On-Mom	PC Pin	100000 Cycles	Standard	3 A 6 A	Black	125 V	Epoxy Sealed Terminals	12.5 mm	Button Round
NKK Switches MB2011SB1W03-CB	No Marking	SPDT	30 V	Panel Mount Rear	25000 Steps	-30 ░C	85 °C	On-Mom	PC Pin	100000 Cycles	Standard	3 A 6 A	White	125 V	Epoxy Sealed Terminals	12.5 mm	Button Round
NKK Switches MB2011SS1W01-BG	No Marking	SPDT	30 V	Panel Mount Rear	25000 Steps	-30 ░C	85 °C	On-Mom	Solder Lug	100000 Cycles	Standard	3 A 6 A	Blue	125 V	Epoxy Sealed Terminals	6.5 mm	Button Round
NKK Switches MB2011SS1W01-BA	No Marking	SPDT	30 V	Panel Mount Rear	25000 Steps	-30 ░C	85 °C	On-Mom	Solder Lug	100000 Cycles	Standard	3 A 6 A	Black	125 V	Epoxy Sealed Terminals	6.5 mm	Button Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.01
		10	$ 6.91
		25	$ 6.52
		50	$ 6.23
		100	$ 5.96

Description

General part information

MB2011S Series

Pushbutton Switch SPDT Standard Panel Mount, Rear
