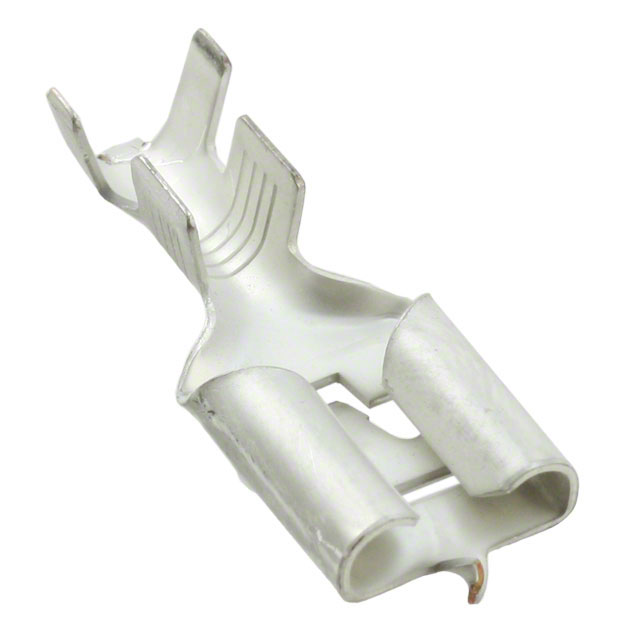

280756-4
ActiveTE Connectivity Raychem Cable Protection
QUICK DISCONNECT TERMINAL 10-12AWG PHOSPHOR BRONZE F 29.25MM TIN T/R
Deep-Dive with AI
Search across all available documentation for this part.
280756-4
ActiveTE Connectivity Raychem Cable Protection
QUICK DISCONNECT TERMINAL 10-12AWG PHOSPHOR BRONZE F 29.25MM TIN T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 280756-4 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 5.1 mm |
| Insulation Diameter [Max] | 0.201 in |
| Insulation Diameter [Min] | 0.134 in |
| Insulation Diameter [Min] | 3.4 mm |
| Length - Overall [x] | 1.102 in |
| Length - Overall [x] | 27.99 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.047 in |
| Tab Thickness | 1.19 mm |
| Tab Width | 0.375 in |
| Tab Width | 9.53 mm |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.34 | |||
| Tape & Reel (TR) | 2000 | $ 0.34 | ||
| 4000 | $ 0.33 | |||
| 6000 | $ 0.30 | |||
| 10000 | $ 0.28 | |||
Description
General part information
FASTIN-FASTON 375 Series
Quick Disconnect Receptacle, 12 – 10 AWG, 3.31 – 5.26 mm² Wire, 9.53 mm [.375 in] Tab Width, Straight, Phosphor Bronze, Tin Plating, FASTIN-FASTON 375
