1567SQ-12(6)

Active

3M (TC)

TAPE MEDICAL CLEAR 12"X12"

Search across all available documentation for this part.

Active

3M (TC)

TAPE MEDICAL CLEAR 12"X12"

Technical Specifications

Parameters and characteristics for this part

Specification	1567SQ-12(6)

Adhesive	Synthetic Rubber Based
Backing, Carrier	Polyester Film
Color	Clear
Length	12 "
Length	304.8 mm
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	27 °C
Storage/Refrigeration Temperature [Max]	81 °F
Storage/Refrigeration Temperature [Min]	10 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Medical
Thickness	0.127 mm
Thickness	5 mils
Thickness	0.005 in
Thickness - Adhesive	0.0041 in
Thickness - Adhesive	0.104 mm
Thickness - Adhesive	4.1 mils
Thickness - Backing, Carrier	0.0009 in
Thickness - Backing, Carrier	0.9 mils
Thickness - Backing, Carrier	0.023 mm
Usage	Medical/Surgical
Width [x]	304.8 mm
Width [x]	12 in

Part	Thickness	Thickness	Thickness	Width [x]	Width [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Backing, Carrier	Shelf Life Start	Length [x]	Length [x]	Length [x]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Color	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Adhesive	Shelf Life	Length	Length
3M (TC) 1567-4-10	0.127 mm	5 mils	0.005 in	4 "	101.6 mm	0.0041 in	0.104 mm	4.1 mils	Polyester Film	Date of Shipment	30 ft	9.1 m	10 yds	27 °C	81 °F	10 °C	10 °C	Clear	Medical/Surgical	0.0009 in	0.9 mils	0.023 mm	Medical	Synthetic Rubber Based	24 Months
3M (TC) 1567SQ-12(6)	0.127 mm	5 mils	0.005 in	12 in	304.8 mm	0.0041 in	0.104 mm	4.1 mils	Polyester Film	Date of Shipment				27 °C	81 °F	10 °C	10 °C	Clear	Medical/Surgical	0.0009 in	0.9 mils	0.023 mm	Medical	Synthetic Rubber Based	24 Months	12 "	304.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

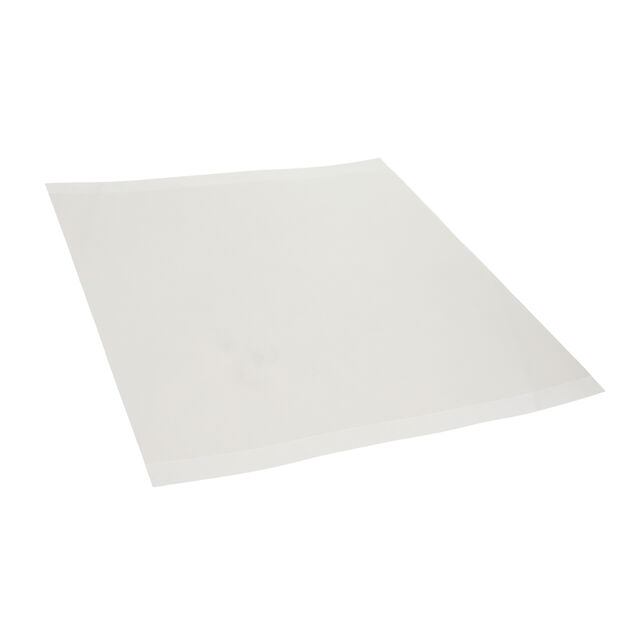

Medical Tape Synthetic Rubber Based Adhesive Clear 12.00" (304.80mm) X 12.00" (304.80mm)

Technical documentation and resources
