RASH722X

Active

Switchcraft Inc.

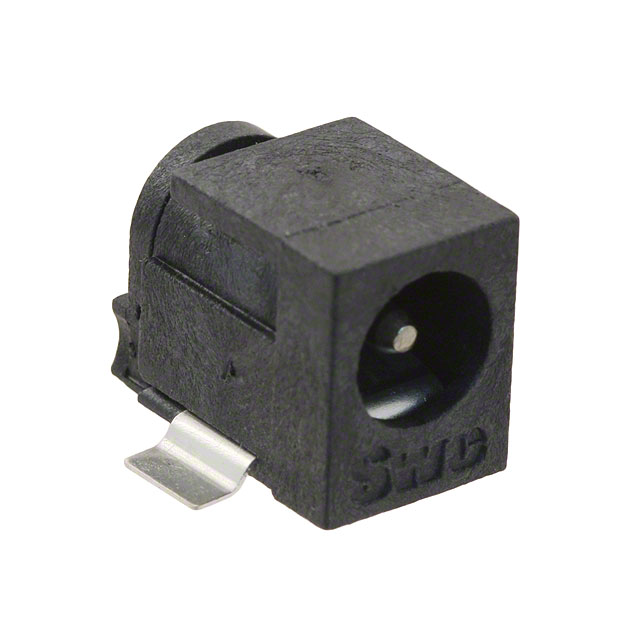

CONN PWR JACK 2X5.5MM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RASH722X

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RASH722X	RASH72 Series

Actual Diameter	-	2 - 6.3 mm
Actual Diameter [diameter]	0.076 in, 0.248 in	0.076 - 0.248 in
Actual Diameter [diameter]	1.93 mm, 6.3 mm	1.93 - 6.3 mm
Body Color	Black	Black
Body Material	-	Copper Alloy
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating	-	Tin
Contact Material - Plating [custom]	Silver	Silver
Current Rating (Amps)	5 A	5 A
Features	Board Guide	Board Guide
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "	0.079 - 0.217 in
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm	2 - 5.5 mm
Insulation Color	-	Black
Internal Switch(s)	Single Switch, Normally Closed	Single Switch, Normally Closed
Mounting Type	Through Hole, Surface Mount, Right Angle	Through Hole, Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Number of Positions/Contacts	-	2
Number of Positions/Contacts	-	2
Operating Temperature	-	65 °C
Operating Temperature	-	-30 ░C
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage - Rated	-	24 VDC

RASH72 Series

CONN PWR JACK 2X5.5MM SOLDER

Part	Housing Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Current Rating (Amps)	Gender	Contact Material	Mounting Type	Contact Material - Plating [custom]	Connector Type	Body Color	Internal Switch(s)	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Actual Diameter [diameter]	Actual Diameter [diameter]	Shielding	Features	Contact Material - Plating	Number of Positions/Contacts	Body Material	Actual Diameter	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Insulation Color
Switchcraft Inc. RASH722PX	Thermoplastic	2	2	Solder	5 A	Male	Copper Alloy	Surface Mount, Right Angle, Through Hole	Silver	Jack	Black	Normally Closed, Single Switch	0.079 in, 0.217 "	2 mm, 5.5 mm	0.076 in, 0.248 in	1.93 mm, 6.3 mm	Unshielded	Board Guide
Switchcraft Inc. RASH722BK	Thermoplastic			Solder	5 A	Male	Copper Alloy	Surface Mount, Right Angle, Through Hole		Jack	Black	Normally Closed, Single Switch	0.079 in, 0.217 "	2 mm, 5.5 mm			Unshielded	Board Guide	Tin	2 Conductors, 3 Conductors
Switchcraft Inc. RASH722X	Thermoplastic			Solder	5 A	Male	Copper Alloy	Surface Mount, Right Angle, Through Hole	Silver	Jack	Black	Normally Closed, Single Switch	0.079 in, 0.217 "	2 mm, 5.5 mm	0.076 in, 0.248 in	1.93 mm, 6.3 mm	Unshielded	Board Guide		2 Conductors, 3 Conductors
Switchcraft Inc. RASH722BKZ	Thermoplastic			Solder	5 A	Male	Copper Alloy	Surface Mount, Right Angle, Through Hole	Silver	Jack	Black	Normally Closed, Single Switch	0.079 in, 0.217 "	2 mm, 5.5 mm	0.079 in, 0.248 in		Unshielded			2 Conductors, 3 Conductors	Copper Alloy	2 mm, 6.3 mm	65 °C	-30 ░C	24 VDC	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.28
		10	$ 2.51
		25	$ 2.26
		50	$ 2.09
		100	$ 1.94
		300	$ 1.72
		500	$ 1.63
		1000	$ 1.52
		2500	$ 1.39

Description

General part information

RASH72 Series

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Right Angle; Through Hole
