RASH722BK

Active

Switchcraft Inc.

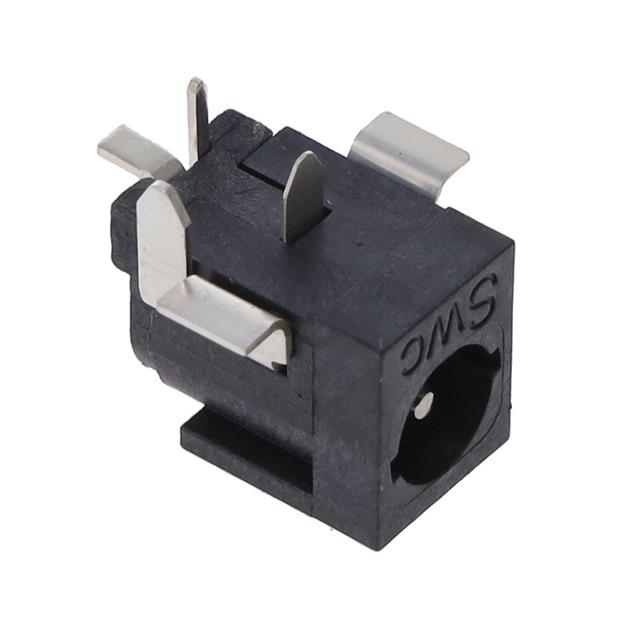

CONN PWR JACK 2X5.5MM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RASH722BK

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.67
		10	$ 1.46
		25	$ 1.39
		50	$ 1.36
		100	$ 1.30
		250	$ 1.18
		500	$ 1.09

Description

General part information

RASH72 Series

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Right Angle; Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RASH722BK	RASH72 Series

Actual Diameter	-	0.076 - 0.248 in
Actual Diameter	-	1.93 - 6.3 mm
Actual Diameter	-	2 - 6.3 mm
Body Color	Black	Black
Body Material	-	Copper Alloy
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating	Tin	Tin
Contact Material - Plating	-	Silver
Current Rating (Amps)	5 A	5 A
Features	Board Guide	Board Guide
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "	0.079 - 0.217 in
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm	2 - 5.5 mm
Insulation Color	-	Black
Internal Switch(s)	Single Switch, Normally Closed	Single Switch, Normally Closed
Mounting Type	Through Hole, Surface Mount, Right Angle	Through Hole, Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Number of Positions/Contacts	-	2
Number of Positions/Contacts	-	2
Operating Temperature	-	65 °C
Operating Temperature	-	-30 ░C
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage - Rated	-	24 VDC

RASH72 Series

CONN PWR JACK 2X5.5MM SOLDER

Part	Housing Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Current Rating (Amps)	Gender	Contact Material	Mounting Type	Contact Material - Plating [custom]	Connector Type	Body Color	Internal Switch(s)	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Actual Diameter [diameter]	Actual Diameter [diameter]	Shielding	Features	Contact Material - Plating	Number of Positions/Contacts	Body Material	Actual Diameter	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Insulation Color
Switchcraft Inc. RASH722PX	Thermoplastic	2	2	Solder	5 A	Male	Copper Alloy	Surface Mount, Right Angle, Through Hole	Silver	Jack	Black	Normally Closed, Single Switch	0.079 in, 0.217 "	2 mm, 5.5 mm	0.076 in, 0.248 in	1.93 mm, 6.3 mm	Unshielded	Board Guide
Switchcraft Inc. RASH722BK	Thermoplastic			Solder	5 A	Male	Copper Alloy	Surface Mount, Right Angle, Through Hole		Jack	Black	Normally Closed, Single Switch	0.079 in, 0.217 "	2 mm, 5.5 mm			Unshielded	Board Guide	Tin	2 Conductors, 3 Conductors
Switchcraft Inc. RASH722X	Thermoplastic			Solder	5 A	Male	Copper Alloy	Surface Mount, Right Angle, Through Hole	Silver	Jack	Black	Normally Closed, Single Switch	0.079 in, 0.217 "	2 mm, 5.5 mm	0.076 in, 0.248 in	1.93 mm, 6.3 mm	Unshielded	Board Guide		2 Conductors, 3 Conductors
Switchcraft Inc. RASH722BKZ	Thermoplastic			Solder	5 A	Male	Copper Alloy	Surface Mount, Right Angle, Through Hole	Silver	Jack	Black	Normally Closed, Single Switch	0.079 in, 0.217 "	2 mm, 5.5 mm	0.079 in, 0.248 in		Unshielded			2 Conductors, 3 Conductors	Copper Alloy	2 mm, 6.3 mm	65 °C	-30 ░C	24 VDC	Black
