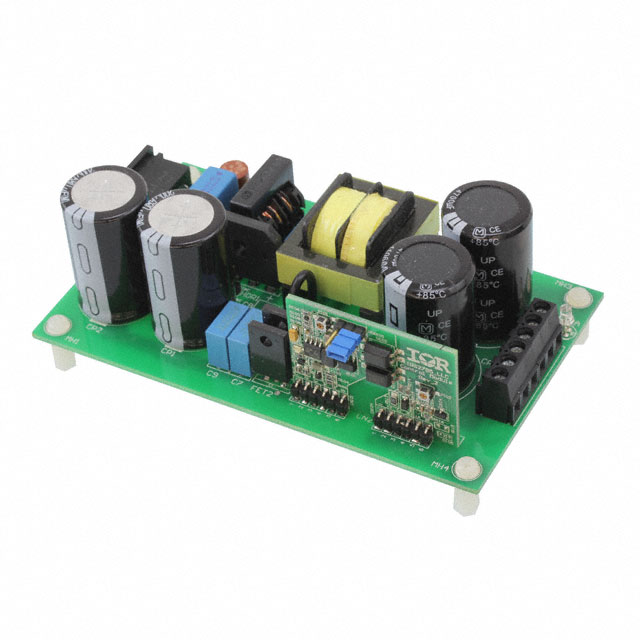

IRAUDPS3
ActiveInfineon Technologies
REFERENCE DESIGN BOARD +/-30V POWER SUPPLY FOR CLASS D AUDIO AMPLIFIER FEATURING THE IRS27952S RESONANT HALF-BRIDGE CONTROLLER
Deep-Dive with AI
Search across all available documentation for this part.
IRAUDPS3
ActiveInfineon Technologies
REFERENCE DESIGN BOARD +/-30V POWER SUPPLY FOR CLASS D AUDIO AMPLIFIER FEATURING THE IRS27952S RESONANT HALF-BRIDGE CONTROLLER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IRAUDPS3 |
|---|---|
| Board Type | Fully Populated |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | 2 |
| Outputs and Type | Non-Isolated |
| Regulator Topology | Resonant |
| Supplied Contents | Board(s) |
| Utilized IC / Part | IRS27952 |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 88 VAC, 176 VAC |
| Voltage - Output | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 185.11 | |
Description
General part information
IRAUDPS3 Series
IRS27952 - AC/DC, Primary Side 2, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
