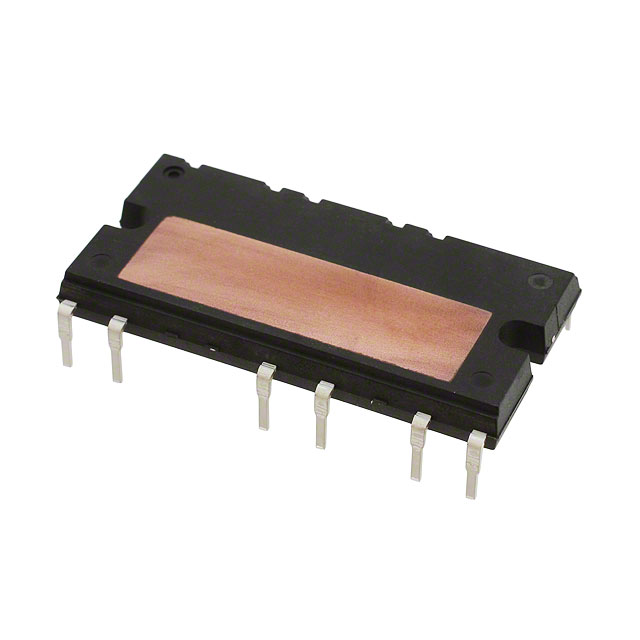

STGIPL35K120L1
ObsoleteSTMicroelectronics
POWER DRIVER IGBT 1200V SDIP-18L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STGIPL35K120L1
ObsoleteSTMicroelectronics
POWER DRIVER IGBT 1200V SDIP-18L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STGIPL35K120L1 |
|---|---|
| Mounting Type | Through Hole |
| Package / Case | 18-PowerDIP Module |
| Package / Case | 1.087 ", 27.6 mm |
| Type | IGBT |
| Voltage | 1.2 kV |
| Voltage - Isolation | 2500 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 26.90 | |
| 10 | $ 23.90 | |||
Description
General part information
STGIPL35 Series
Power Driver Module IGBT 1 Phase 1.2 kV 35 A 18-PowerDIP Module (1.087", 27.60mm)
