6280-2SG-311

Active

Conxall/Switchcraft

CONN PLUG FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6280-2SG-311	6280-2SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

CONN PLUG FMALE 2POS GOLD CRIMP

Part	Current Rating (Amps)	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions	Backshell Material, Plating	Shielding	Termination	Contact Finish - Mating	Primary Material	Ingress Protection	Mounting Type	Voltage Rating	Fastening Type	Connector Type	Contact Material	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 6280-2SG-311	Varies by Wire Gauge	Backshell	Black	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Keyed	2.29 mm	0.09 in, 0.14 in	3.56 mm	2	Nylon, Polyamide (PA)	Unshielded	Crimp	Gold	Plastic	Weathertight	Free Hanging (In-Line)	600 V	Bayonet Lock	Female Sockets, Plug	Brass
Conxall/Switchcraft 6280-2SG-513	Varies by Wire Gauge	Backshell	Black	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Keyed				2	Nylon, Polyamide (PA)	Unshielded	Crimp	Gold	Plastic	Weathertight	Free Hanging (In-Line)	600 V	Bayonet Lock	Female Sockets, Plug	Brass	0.13 in, 0.15 in	3.3 mm, 3.81 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

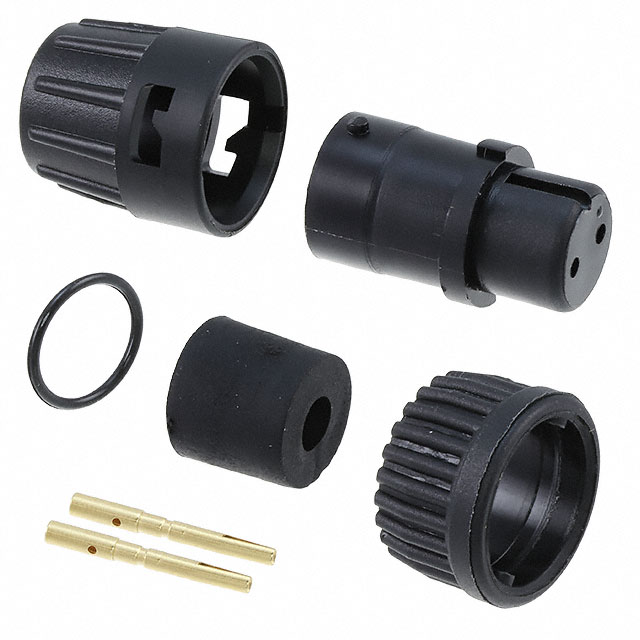

2 Position Circular Connector Plug, Female Sockets Crimp
