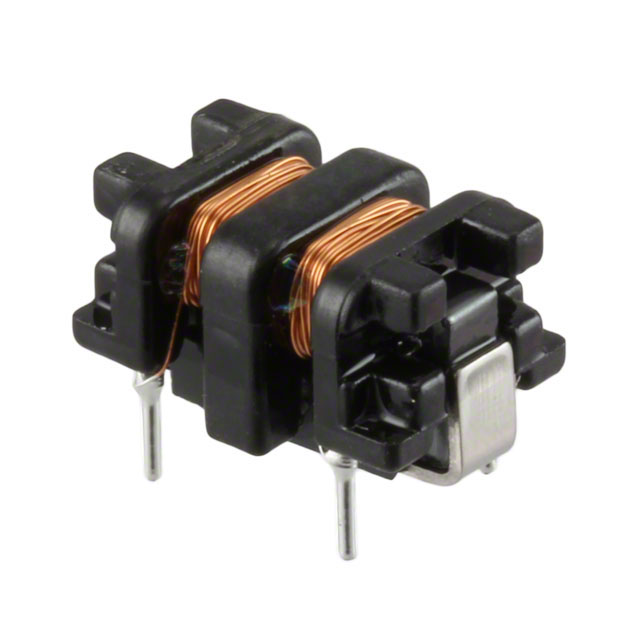

SU7VC-05011 - SU7VC-05011

SU7VC-05011

Active
KEMET

COMMON MODE FILTER, 1100UH, THD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_LF0015_SU7VC.pdfSU7VC-05011+4
SU7VC-05011 - SU7VC-05011

SU7VC-05011

Active
KEMET

COMMON MODE FILTER, 1100UH, THD

Deep-Dive with AI

DocumentsKEM_LF0015_SU7VC.pdfSU7VC-05011+4

Technical Specifications

Parameters and characteristics for this part

SpecificationSU7VC-05011
Current Rating (Max) [Max]500 mA
DC Resistance (DCR) (Max) [Max]840 mOhm
Filter TypePower Line
Height (Max) [Max]0.335 "
Height (Max) [Max]8.5 mm
Inductance @ Frequency1 kHz, 1.1 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-25 °C
Package / Case4 Lead
Package / CaseVertical
Size / Dimension [x]0.591 in
Size / Dimension [x]15 mm
Size / Dimension [y]10 mm
Size / Dimension [y]0.394 in
Voltage Rating - AC125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.18
10$ 2.14
150$ 1.17
1050$ 0.74
5100$ 0.65
10050$ 0.63
NewarkEach 1$ 1.59
10$ 1.41
25$ 1.24
50$ 1.06
100$ 0.89
500$ 0.83
1000$ 0.77
2500$ 0.69

Description

General part information

SU7VC Series

1.1 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 840mOhm
