H3BWH-1636M

Active

Assmann WSW Components

IDC CBL - HHSR16H/AE16M/HHPL16H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR16H/AE16M/HHPL16H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BWH-1636M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Strain Relief (Socket), Polarizing Key (Plug), Flange
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish	Cable Termination	Number of Rows	Shielding	Features	Length [x]	Length [x]	Color	Length	Length	Length
Assmann WSW Components H3BWH-1618G	15 µin	0.38 µm	16	0.05 "	1.27 mm	0.1 in	2.54 mm	Socket to Plug	Gold	IDC	2	Unshielded	Flange Polarizing Key (Plug) Strain Relief (Socket)	457.2 mm	1.5 ft
Assmann WSW Components H3BWH-1636M	15 µin	0.38 µm	16	0.05 "	1.27 mm	0.1 in	2.54 mm	Socket to Plug	Gold	IDC	2	Unshielded	Flange Polarizing Key (Plug) Strain Relief (Socket)	914.4 mm	3 ft	Multiple Ribbon
Assmann WSW Components H3BWH-1606G	15 µin	0.38 µm	16	0.05 "	1.27 mm	0.1 in	2.54 mm	Socket to Plug	Gold	IDC	2	Unshielded	Flange Polarizing Key (Plug) Strain Relief (Socket)				152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

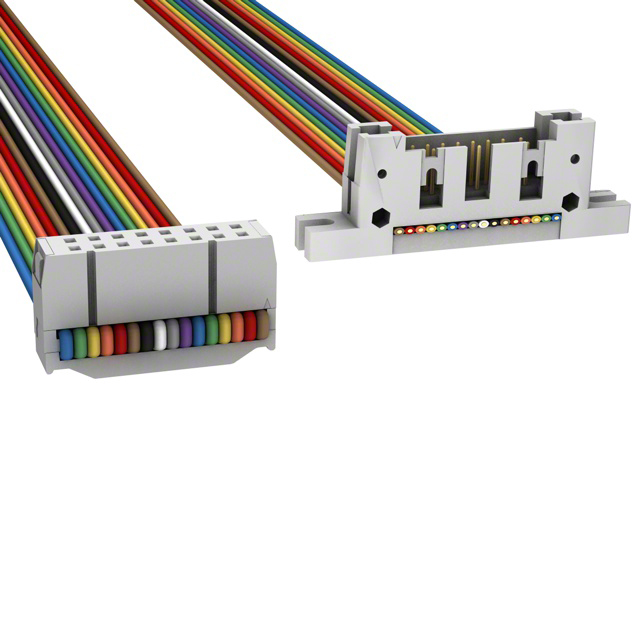

16 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
