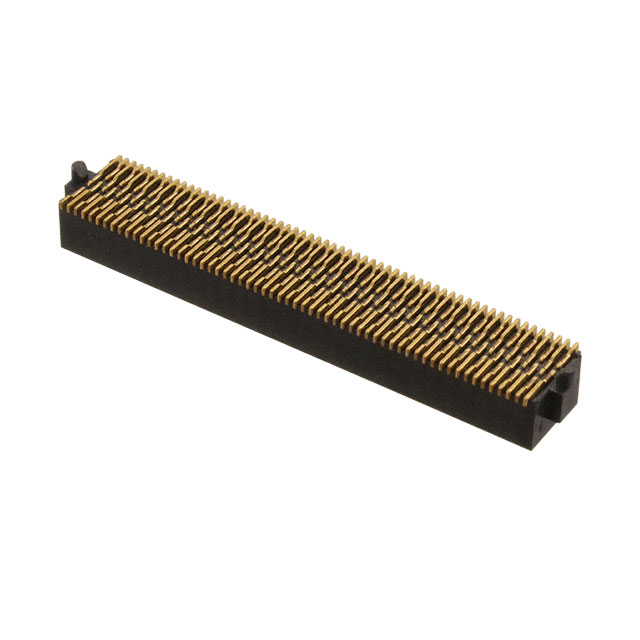

SOLC-130-02-L-Q-A

Active

Samtec Inc.

CONN RCPT 120POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSOLC Datasheet .050" FOURRAY™ Quad Row Tiger Buy™ Socket Strip +1

SOLC-130-02-L-Q-A

Active

Samtec Inc.

CONN RCPT 120POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsSOLC Datasheet .050" FOURRAY™ Quad Row Tiger Buy™ Socket Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SOLC-130-02-L-Q-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2.4 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height [z]	0.16 in
Insulation Height [z]	4.06 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	120
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

SOLC-130 Series

Part	Contact Material	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Height [z]	Insulation Height [z]	Connector Type	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Shape	Current Rating (Amps)	Features	Contact Finish - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post
Samtec Inc. SOLC-130-02-L-Q-A-K-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A	Board Guide Pick and Place	Gold	Black	10 çin	0.25 çm	Gold
Samtec Inc. SOLC-130-02-L-Q-K-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A	Pick and Place	Gold	Black	10 çin	0.25 çm	Gold
Samtec Inc. SOLC-130-02-F-Q	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A		Gold	Black	3 µin	0.076 µm	Gold
Samtec Inc. SOLC-130-02-L-Q	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A		Gold	Black	10 çin	0.25 çm	Gold
Samtec Inc. SOLC-130-02-S-Q-K-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A	Pick and Place	Gold	Black	30 Áin	0.76 Ám	Gold
Samtec Inc. SOLC-130-02-F-Q-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A		Gold	Black	3 µin	0.076 µm	Gold
Samtec Inc. SOLC-130-02-S-Q-LC-P	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A	Board Lock Pick and Place	Gold	Black	30 Áin	0.76 Ám	Gold
Samtec Inc. SOLC-130-02-L-Q-A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A	Board Guide	Gold	Black	10 çin	0.25 çm	Gold
Samtec Inc. SOLC-130-02-L-Q-A-K	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A	Board Guide Pick and Place	Gold	Black	10 çin	0.25 çm	Gold
Samtec Inc. SOLC-130-02-F-Q-K	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	All	UL94 V-0	3 µin	0.076 µm	120	0.16 in	4.06 mm	Receptacle	Push-Pull	Forked	-55 °C	125 °C	Solder	Surface Mount	0.05 in	1.27 mm	Square	2.4 A	Pick and Place	Gold	Black	3 µin	0.076 µm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 18.52
		10	$ 17.53
		25	$ 17.20
