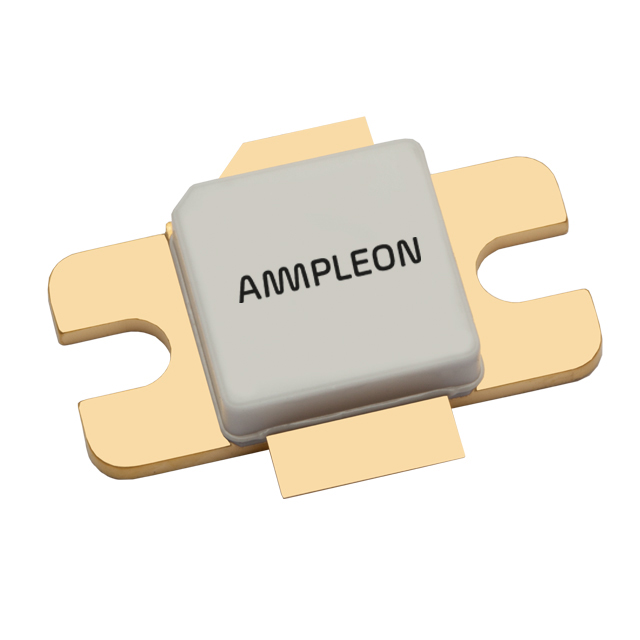

BLS6G3135-20,112

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 32V CDFM2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 32V CDFM2

Technical Specifications

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 32V SOT502B

Part	Power - Output	Frequency [Min]	Frequency [Max]	Package / Case	Voltage - Rated	Voltage - Test	Current - Test	Gain	Current Rating (Amps)	Mounting Type	Supplier Device Package
Ampleon USA Inc. BLS6G2731S-120,112	120 W	2.7 GHz	3.1 GHz	SOT-502B	60 V	32 V	100 mA	13.5 dB	33 A	Chassis Mount	SOT502B
Ampleon USA Inc. BLS6G2731-120,112	120 W	2.7 GHz	3.1 GHz	SOT-502A	60 V	32 V	100 mA	13.5 dB	33 A	Chassis Mount	SOT502A
Ampleon USA Inc. BLS6G3135S-120,112	120 W	3.1 GHz	3.5 GHz	SOT-502B	60 V	32 V	100 mA	11 dB	7.2 A	Chassis Mount	SOT502B
Ampleon USA Inc. BLS6G3135-20,112	20 W	3.1 GHz	3.5 GHz	SOT-608A	60 V	32 V	50 mA	15.5 dBi	2.1 A	Chassis Mount	CDFM2
Ampleon USA Inc. BLS6G3135-120,112	120 W	3.1 GHz	3.5 GHz	SOT-502A	60 V	32 V	100 mA	11 dB	7.2 A	Chassis Mount	SOT502A
Ampleon USA Inc. BLS6G2933S-130,112	130 W	2.9 GHz	3.3 GHz	SOT-922-1	60 V	32 V	100 mA	12.5 dBi	33 A	Chassis Mount	CDFM2
Ampleon USA Inc. BLS6G2735L-30,112	30 W	3.1 GHz	3.5 GHz	SOT-1135A	60 V	32 V	50 mA	13 dBi		Chassis Mount	CDFM2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 32 V 50 mA 3.1GHz ~ 3.5GHz 15.5dB 20W CDFM2
