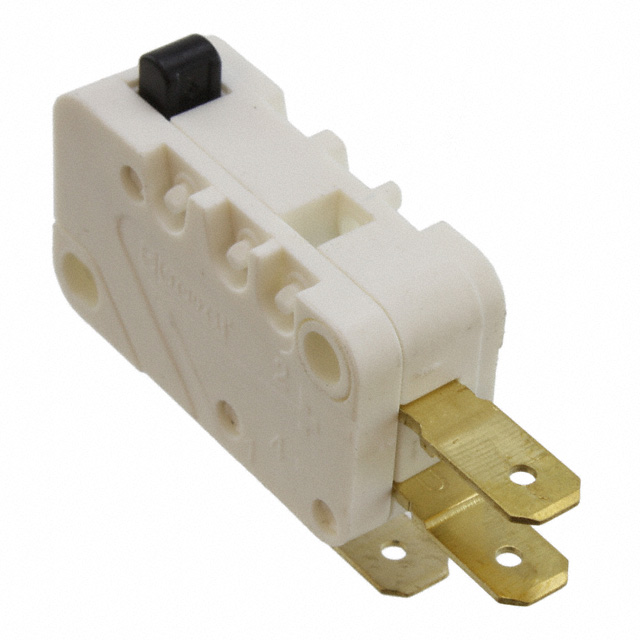

831612A6.0

Active

Crouzet

SWITCH SNAP ACT SPST-NO 20A 250V

Search across all available documentation for this part.

Active

Crouzet

SWITCH SNAP ACT SPST-NO 20A 250V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACT SPST-NO 20A 250V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Operating Force	Overtravel	Overtravel	Switch Function	Release Force	Circuit	Termination Style	Voltage Rating - AC	Mounting Type	Operating Position	Operating Position	Mechanical Life	Current Rating (Amps)
Crouzet 831612A6.0	-20 C	125 °C	Round (Pin Plunger)	82 gf	1.2 mm	0.047 "	Off-Mom	20 gf	SPST-NO	Quick Connect - 0.187" (4.7mm)	250 V	Chassis Mount	0.579 in	14.7 mm	20000000 Cycles	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NO Chassis Mount
