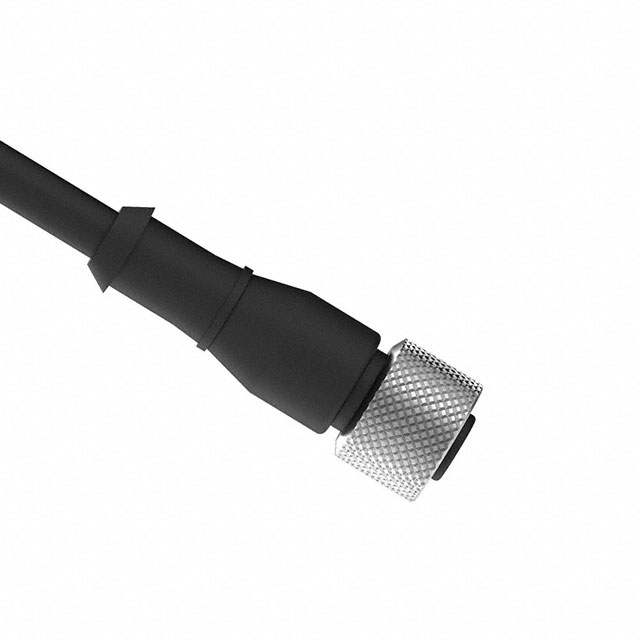

MAQDC-850

Active

BANNER ENGINEERING

CORDSET A-CODE M12 SINGLE ENDED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

CORDSET A-CODE M12 SINGLE ENDED

Technical Specifications

Parameters and characteristics for this part

Specification	MAQDC-850

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	15.24 m
Length	50 ft
Shielding	Shielded
Usage	Industrial Environments

Part	Ingress Protection	1st Connector Shell Size - Insert	1st Connector Mounting Type	1st Connector Number of Positions Loaded	1st Connector Number of Positions	Assembly Configuration	2nd Connector Type	Color	1st Connector Type	Length	Length	1st Connector Gender	Cable Type	Usage	1st Connector Orientation [custom]	Cable Material	Shielding
BANNER ENGINEERING MAQDC-830	IP67 - Dust Tight Waterproof	M12	Free Hanging (In-Line)	All	8 positions	Standard	Wire Leads	Black	Plug	30 '	9.14 m	Female Sockets	Round	Industrial Environments	Keyed	Polyvinyl Chloride (PVC)	Shielded
BANNER ENGINEERING MAQDC-850	IP67 - Dust Tight Waterproof	M12	Free Hanging (In-Line)	All	8 positions	Standard	Wire Leads	Black	Plug	50 ft	15.24 m	Female Sockets	Round	Industrial Environments	Keyed	Polyvinyl Chloride (PVC)	Shielded
BANNER ENGINEERING MAQDC-830RA	IP67 - Dust Tight Waterproof	M12	Free Hanging (In-Line)	All	8 positions	Standard	Wire Leads	Black	Plug Right Angle	30 '	9.14 m	Female Sockets	Round	Industrial Environments	Keyed	Polyvinyl Chloride (PVC)	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 134.00
Newark	Each	1	$ 137.00

General part information

Circular Cable Assembly Shielded 50.0' (15.24m)
