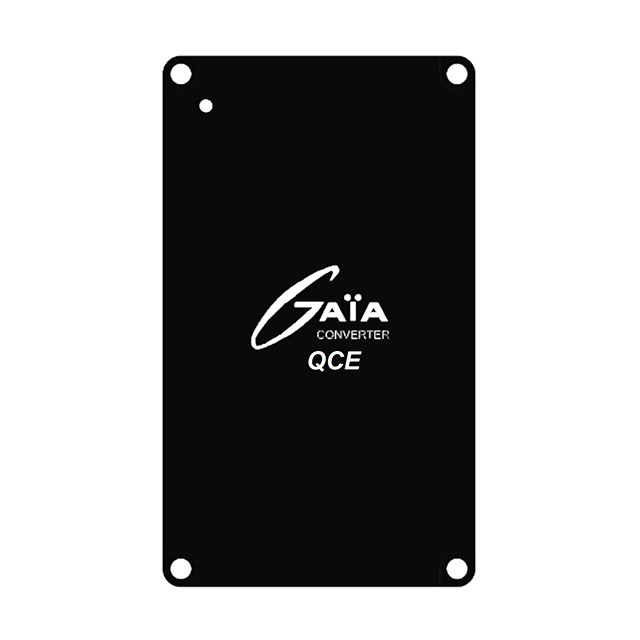

MGDSK100MF

Active

Gaia Converter

DC DC CONVERTER

Search across all available documentation for this part.

Active

Gaia Converter

DC DC CONVERTER

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Power (Watts)	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Isolation	Number of Outputs	Package / Case	Applications	Current - Output (Max) [Max]
Gaia Converter MGDSK100MF	-40 °C	203 °F	Isolated Module	Through Hole	11 V	15 V	100 W	60 V	73.3 mm	48.26 mm	48.3 mm	12.8 mm	0.49 in	2.88 in	88 %	1.5 kV	1	18-DIP Module	ITE (Commercial)	6.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 6.5A 11V - 60V Input
