AQH1223
ActivePanasonic Electric Works
SSR RELAY SPST-NO 600MA 0-600V
Deep-Dive with AI
Search across all available documentation for this part.
AQH1223
ActivePanasonic Electric Works
SSR RELAY SPST-NO 600MA 0-600V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AQH1223 |
|---|---|
| Approval Agency | cURus, VDE |
| Load Current | 600 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in, 7 Leads |
| Package / Case | 8-DIP |
| Supplier Device Package | 8-DIP |
| Termination Style | PC Pin |
| Voltage - Load [Max] | 600 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.53 | |
| 10 | $ 1.43 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.89 | |||
| 5000 | $ 0.86 | |||
Description
General part information
AQH122 Series

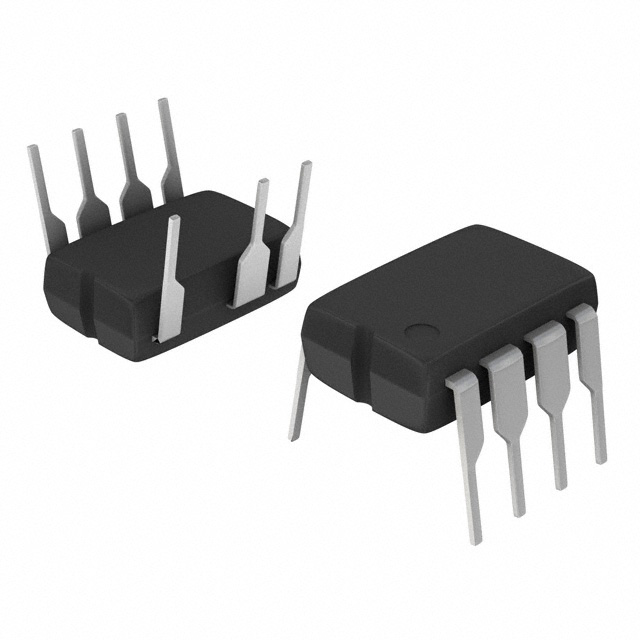

Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 7 Leads
