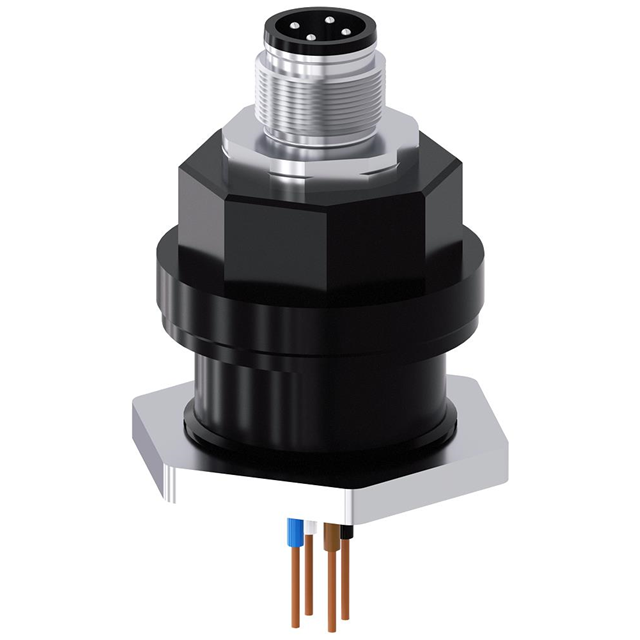

3SU19500HS100AA0
ActiveSiemens
ADAPTER ASI M12 CONNECTOR, 5-PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3SU19500HS100AA0
ActiveSiemens
ADAPTER ASI M12 CONNECTOR, 5-PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SU19500HS100AA0 |
|---|---|
| Applications | Automation, Industrial |
| Color | Black, Silver |
| Connector Type | Plug, Male Pins |
| Ingress Protection | IP69K, IP67, IP66 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
3SU1950 Series
| Part | For Use With/Related Products | Accessory Type | Shielding | Orientation | Ingress Protection | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Applications | Connector Type | Color | Shell Size - Insert | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | 3SU1 Series | Lock Plate | ||||||||||||
Siemens | 3SU1 Series | |||||||||||||
Siemens | 3SU1 Series | Protective Collar | ||||||||||||
Siemens | 3SU1 Series | Lock Plate | ||||||||||||
Siemens | 3SU1 Series | Locking Device | ||||||||||||
Siemens | 3SU1 Series | Operation Console | ||||||||||||
Siemens | 3SU1 Series | Protective Collar | ||||||||||||
Siemens | 3SU1 Series | Lock Plate | ||||||||||||
Siemens | 3SU1 Series | Protective Collar | ||||||||||||
Siemens | Unshielded | Keyed | IP66 IP67 IP69K | Metal | 70 °C | -25 °C | Free Hanging (In-Line) | Automation Industrial | Male Pins Plug | Black Silver | M12-5 | Metal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3SU1950 Series
5 Position Circular Connector Plug, Male Pins
