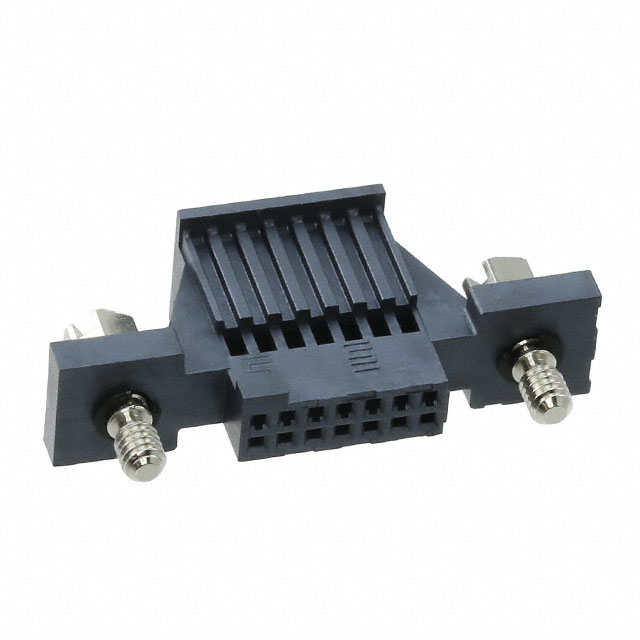

ISDF-07-D-S

Active

Samtec Inc.

CONN INSULATOR HSG 14POS 1.27MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN INSULATOR HSG 14POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Material	Contact Type	Pitch [x]	Pitch [x]	Color	Row Spacing	Row Spacing	Number of Positions	Number of Rows	Note	Fastening Type	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Type
Samtec Inc. ISDF-07-D-S	Liquid Crystal Polymer (LCP)	Female Socket	0.05 in	1.27 mm	Black	1.27 mm	0.05 in	14	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Mating Flange	-55 °C	125 °C	Crimp	Insulator
Samtec Inc. ISDF-07-D-M	Liquid Crystal Polymer (LCP)	Female Socket	0.05 in	1.27 mm	Black	1.27 mm	0.05 in	14	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Retention Latches	-55 °C	125 °C	Crimp	Insulator
