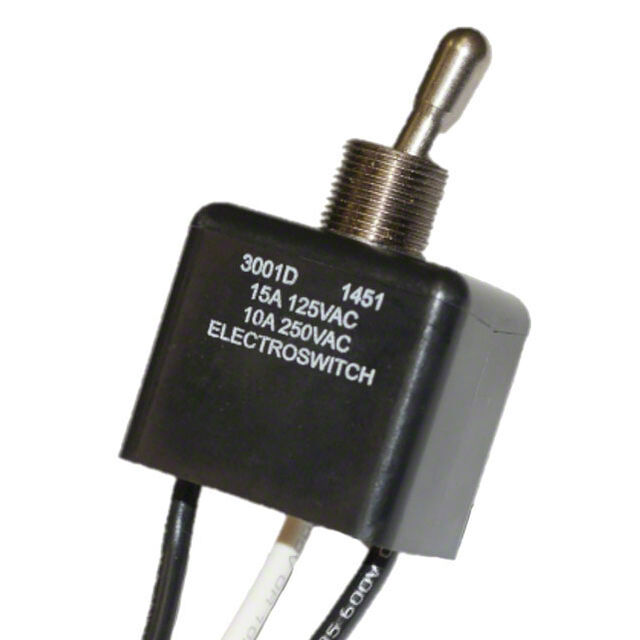

3001D

Active

ELECTROSWITCH

SWITCH TOGGLE SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3001D

Active

ELECTROSWITCH

SWITCH TOGGLE SPDT 15A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 16.49

Description

General part information

- Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3001D	- Series

Actuator Length [x]	14.22 mm	0.5 - 20.62 mm
Actuator Marking	-	No Marking
Actuator Material	-	Brass, Nickel Plated, Nylon, Polyamide (PA)
Actuator Type	Standard Round	Standard Round, Concave (Curved), Flatted
Bushing Thread	15/32-32	15/32-32, Unthreaded
Circuit	SPDT	SPDT, DPDT, SPST, SPST-NO, DPST
Color - Actuator/Cap	-	Red
Current Rating (Amps)	15 A	6 - 500 A
Electrical Life	100000 Cycles	10000 - 100000 Cycles
Features	-	Red Actuator
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	-	500000 Cycles
Mounting Type	-	Through Hole, Right Angle
Operating Temperature [Max]	65 °C	65 - 70 °C
Operating Temperature [Min]	-10 °C	-20 - -10 °C
Switch Function	On-On	On-On, Mom-Off-Mom, On-Off-On, On-Off, Off-Mom, On-Off-Mom, On-Mom
Termination Style	Wire Leads	Solder Lug, Quick Connect - 0.250" (6.3mm), Wire Leads, Screw Terminal, PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	-	28 V

- Series

SWITCH TOGGLE SPDT 6A 125V

Part	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Switch Function	Termination Style	Current Rating (Amps)	Illumination	Voltage Rating - AC	Electrical Life	Bushing Thread	Actuator Type	Ingress Protection	Voltage Rating - DC	Actuator Marking	Mechanical Life	Color - Actuator/Cap	Mounting Type	Actuator Material
ELECTROSWITCH 7101D	SPDT	-10 °C	65 °C	14.27 mm	On-On	Solder Lug	6 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH 7162C	SPDT	-10 °C	65 °C	14.27 mm	Mom-Off-Mom	Quick Connect - 0.250" (6.3mm)	6 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH 3101D	SPDT	-10 °C	65 °C	14.22 mm	On-On	Wire Leads	6 A	Non-Illuminated	125 V	25000 Steps	15/32-32	Standard Round	IP67 - Dust Tight, Waterproof
ELECTROSWITCH 3302C	SPDT	-10 °C	65 °C	14.22 mm	On-Off-On	Quick Connect - 0.250" (6.3mm)	20 A	Non-Illuminated	125 V	100000 Cycles	15/32-32	Standard Round	IP67 - Dust Tight, Waterproof
ELECTROSWITCH 7262B	SPDT	-10 °C	65 °C	14.27 mm	Mom-Off-Mom	Screw Terminal	20 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH RK8006	DPDT	-20 C	70 °C		On-Off-On	PC Pin	500 mA		125 V	100000 Cycles		Concave (Curved)		28 V	No Marking	500000 Cycles	Red	Through Hole, Right Angle
ELECTROSWITCH 6630	SPST	-10 °C	65 °C	14.27 mm	On-Off	Wire Leads	12 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round							Brass, Nickel Plated
ELECTROSWITCH 7202B	SPDT	-10 °C	65 °C	14.27 mm	On-Off-On	Screw Terminal	20 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH 7262C	SPDT	-10 °C	65 °C	14.27 mm	Mom-Off-Mom	Quick Connect - 0.250" (6.3mm)	20 A	Non-Illuminated	125 V	10000 Cycles	15/32-32	Standard Round
ELECTROSWITCH 3001D	SPDT	-10 °C	65 °C	14.22 mm	On-On	Wire Leads	15 A	Non-Illuminated	125 V	100000 Cycles	15/32-32	Standard Round	IP67 - Dust Tight, Waterproof
