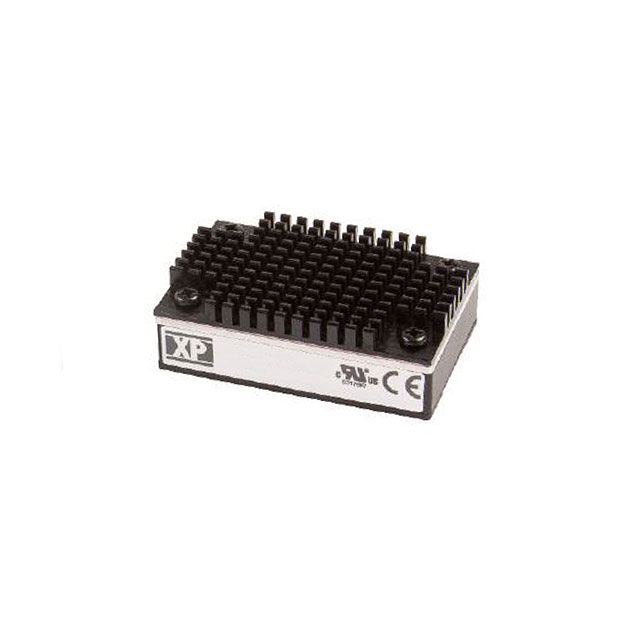

RCQ50110S24
ObsoleteXP POWER
DC-DC CONVERTER, 1 O/P, 24V, 2.08A
Deep-Dive with AI
Search across all available documentation for this part.
RCQ50110S24
ObsoleteXP POWER
DC-DC CONVERTER, 1 O/P, 24V, 2.08A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RCQ50110S24 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 2.08 A |
| Efficiency | 91 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 35 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 66 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 129.79 | |
| 5 | $ 120.22 | |||
| 10 | $ 116.60 | |||
| 50 | $ 113.08 | |||
| 100 | $ 109.54 | |||
Description
General part information
RCQ50110 Series
Isolated Module DC DC Converter 1 Output 24V 2.08A 66V - 160V Input
