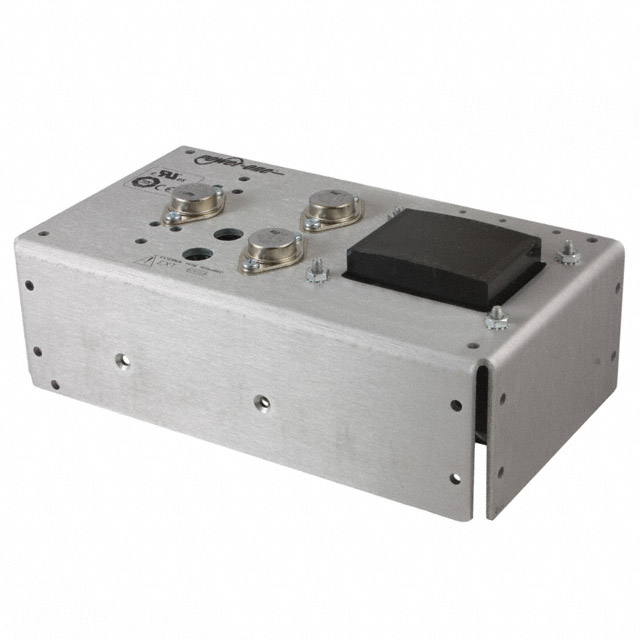

HD15-6-AG

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 15V 6A 90W CASE D

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 15V 6A 90W CASE D

Technical Specifications

Parameters and characteristics for this part

Specification	HD15-6-AG

Applications	ITE (Commercial)
Current - Output 1	6 A
Efficiency	55 %
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	90 W
Size / Dimension [x]	9 in
Size / Dimension [x]	228.6 mm
Size / Dimension [y]	4.87 in
Size / Dimension [y]	123.7 mm
Size / Dimension [z]	3.28 in
Size / Dimension [z]	83.3 mm
Type	Linear
Voltage - Input	240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

AC/DC POWER SUPPLY SINGLE-OUT 15V 6A 90W CASE D

Part	Applications	Voltage - Output 1	Mounting Type	Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Features	Efficiency	Voltage - Isolation	Current - Output 1	Number of Outputs	Voltage - Input
Bel Power Solutions HD15-6-AG	ITE (Commercial)	15 V	Chassis Mount	Linear	90 W	3.28 in	4.87 in	123.7 mm	9 in	228.6 mm	83.3 mm	Adjustable Output, Remote Sense	55 %	3000 V	6 A	1	100 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear AC DC Converters 1 Output 15V 100, 120, 220, 230, 240 VAC Input
