General part information

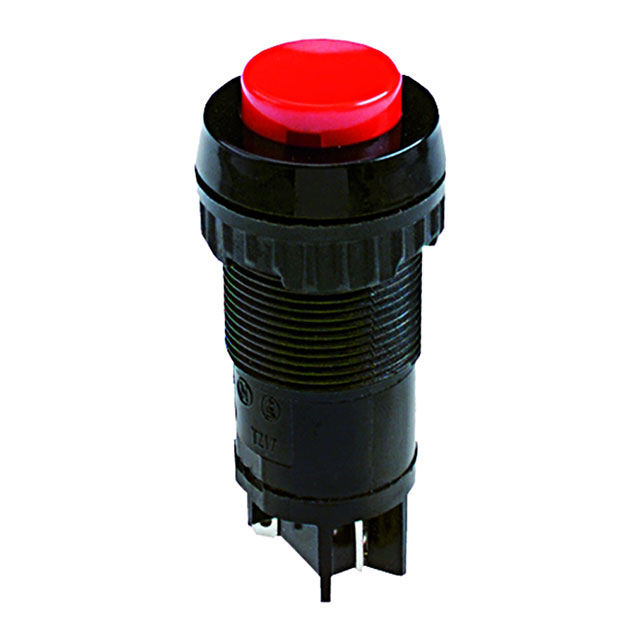

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1.15112.1210000 | 1.15.112 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Round, Button | Round, Button |
| Circuit | DPST-NO/NC | SPST-NO, DPST-NO/NC |
| Current Rating (Amps) | 2 A | 2 A |
| Electrical Life | 100000 Cycles | 100000 Cycles |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 100000 Cycles | 100000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 20.3 mm | 20.3 mm |
| Switch Function | Off-Mom, On-Mom | Off-Mom, On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Illuminated, Standard | Illuminated, Standard |
| Voltage Rating - AC | 250 V | 250 V |
SWITCH PUSH SPST-NO 2A 250V
| Part | Actuator Type | Switch Function | Mounting Type | Current Rating (Amps) | Mechanical Life | Actuator Marking | Type | Voltage Rating - AC | Electrical Life | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Termination Style | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RAFI USA 1.15112.1010000 | Button, Round | Off-Mom | Panel Mount, Front | 2 A | 100000 Cycles | No Marking | Illuminated, Standard | 250 V | 100000 Cycles | 20.3 mm | -25 °C | 85 °C | IP40 | Quick Connect - 0.110" (2.8mm) | SPST-NO |
RAFI USA 1.15112.1210000 | Button, Round | Off-Mom, On-Mom | Panel Mount, Front | 2 A | 100000 Cycles | No Marking | Illuminated, Standard | 250 V | 100000 Cycles | 20.3 mm | -25 °C | 85 °C | IP40 | Quick Connect - 0.110" (2.8mm) | DPST-NO/NC |
