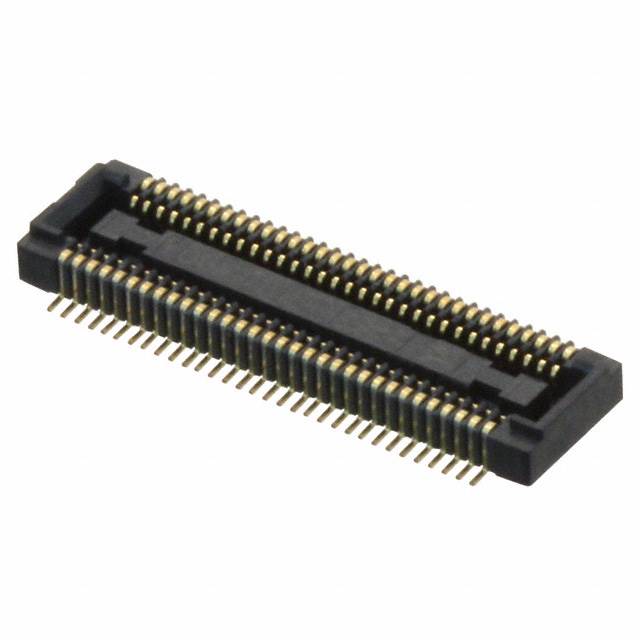

AXK764147G

Obsolete

Panasonic Electric Works

CONN SOCKET 64POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 64POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK764147G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board	0.059 in
Height Above Board	1.5 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	64
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Height Above Board	Height Above Board	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Mated Stacking Heights	Mounting Type
Panasonic Electric Works AXK764147G	64	0.059 in	1.5 mm	Gold	0.016 in	0.4 mm	2	Center Strip Outer Edge Contacts Socket	1.5 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

64 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
