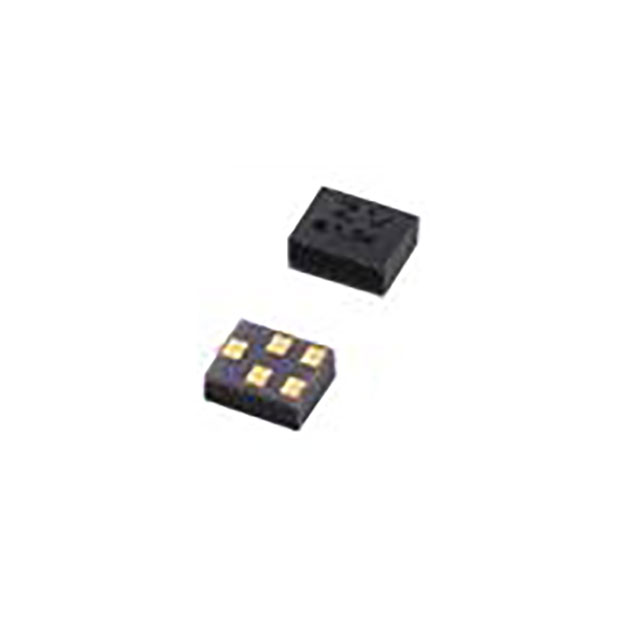

SF2330K

Active

RFMi

FILTER, SAW, 1890 MHZ, 5SMD

Search across all available documentation for this part.

Active

RFMi

FILTER, SAW, 1890 MHZ, 5SMD

Technical Specifications

Parameters and characteristics for this part

FILTER, SAW, 1890 MHZ, 5SMD

Part	Height (Max) [Max]	Height (Max) [Max]	Insertion Loss	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Bandwidth	Frequency - Center	Package / Case	Applications
RFMi SF2330K	0.6 mm	0.024 in	2.2 dB	Surface Mount	0.055 in	0.043 in	1.4 mm	1.1 mm	AEC-Q200	15.552 MHz	1.89 GHz	5-SMD, No Lead	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.89GHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 2.2dB 15.552MHz Bandwidth 5-SMD, No Lead

Technical documentation and resources
