2-1318983-6

Active

TE Connectivity AMP Connectors

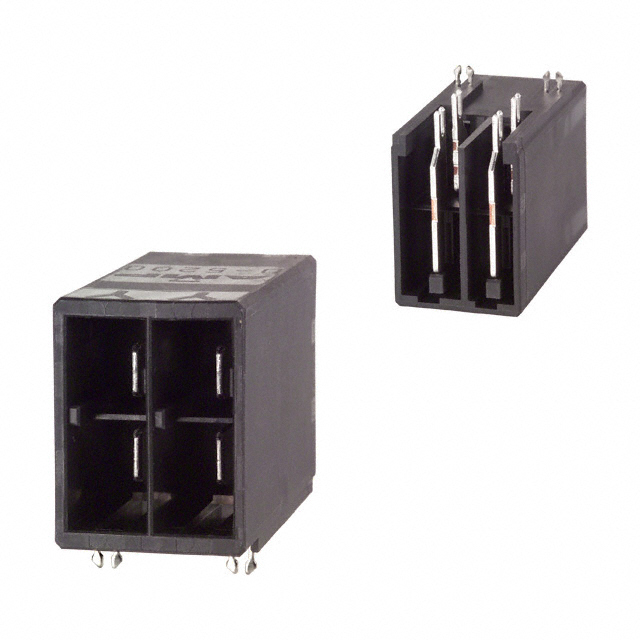

CONN HEADER R/A 4POS 10.16MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 10.16MM

Technical Specifications

Parameters and characteristics for this part

Specification	2-1318983-6

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Silver
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating (Amps)	45 A
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	1.215 in
Insulation Height	30.86 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	10.16 mm
Pitch - Mating	0.4 in
Row Spacing - Mating	10.16 mm
Row Spacing - Mating	0.4 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	630 V

CONN HEADER R/A 4POS 10.16MM

Part	Insulation Color	Contact Type	Connector Type	Pitch - Mating	Pitch - Mating	Number of Rows	Style	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Applications	Voltage Rating	Number of Positions	Contact Finish - Post	Contact Shape	Material Flammability Rating	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Current Rating (Amps)	Mounting Type	Number of Positions Loaded	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 2-1318983-6	Black	Tab	Header	10.16 mm	0.4 in	2	Board to Cable/Wire	1.215 in	30.86 mm	0.15 in	3.81 mm	General Purpose, Industrial	630 V	4	Tin	Rectangular	UL94 V-0	Solder	Copper Alloy	2.54 çm	100 çin	Glass Filled, Polyester, Thermoplastic	Detent Lock	10.16 mm	0.4 in	Shrouded - 4 Wall	45 A	Through Hole, Right Angle	All	Silver	105 ░C	-55 °C
