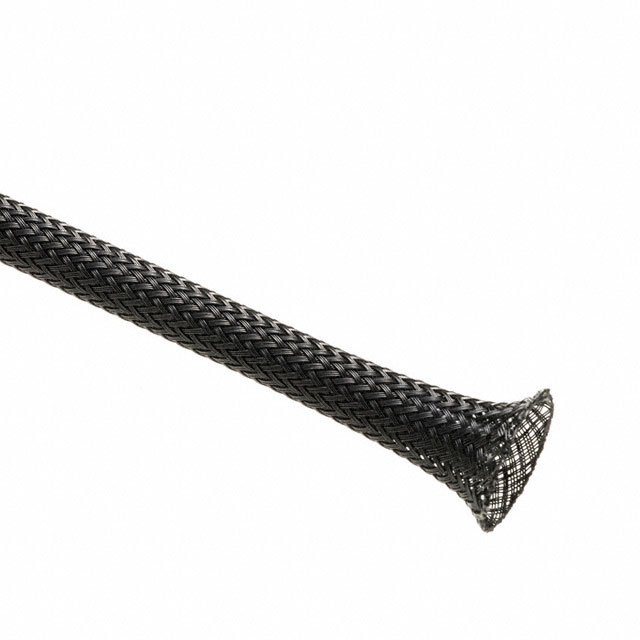

PKN0.25BK200

Active

Techflex

EXPAND SLEEVING 1/4" X 200' BLK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 1/4" X 200' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	PKN0.25BK200

Color	Black
Diameter - Inside, Expanded [diameter]	0.563 in
Diameter - Inside, Expanded [diameter]	14.3 mm
Environment Protection	Corrosion Resistant, Environment Resistant
Features	Wear Resistant, Radiation Resistant, Chemical Resistant, Acid Resistant, Solvent Resistant, Clean Cut
Heat Protection	Flame Retardant, Heat Resistant
Length	60.96 m
Length	200 '
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Wall Thickness [custom]	Wall Thickness [custom]	Environment Protection	Type Attributes	Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Features	Heat Protection	Length	Length
Techflex PKN0.25BK200	0.563 in	14.3 mm	0.025 in	0.64 mm	Corrosion Resistant Environment Resistant	Expandable	Sleeve	Black	260 ░C	-70 °C	UL94 V-0	Acid Resistant Chemical Resistant Clean Cut Radiation Resistant Solvent Resistant Wear Resistant	Flame Retardant Heat Resistant	60.96 m	200 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 198.54

General part information

Sleeve X 200' (60.96m) Black

Technical documentation and resources
