Q-2H0460001108i

Active

Amphenol Custom Cable

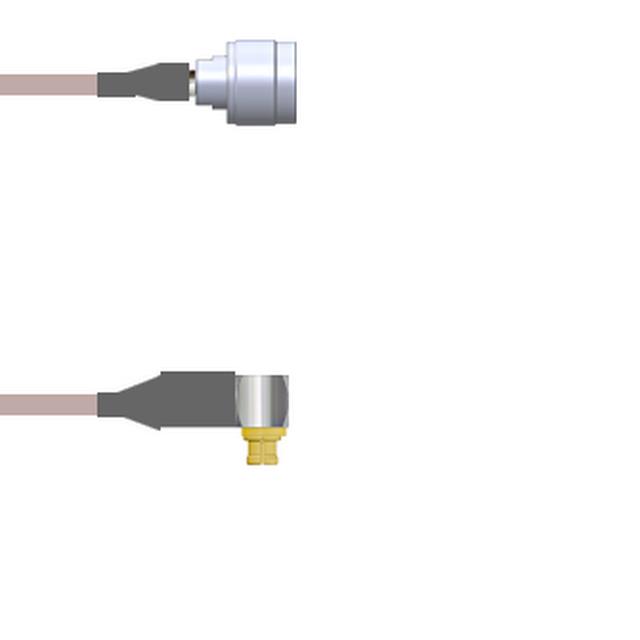

CBL ASSY SMPM-NTYPE PLUG-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H0460001108i

Active

Amphenol Custom Cable

CBL ASSY SMPM-NTYPE PLUG-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H0460001108i

1st Connector	Right Angle, SMPM Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMPM to N-Type

Q-2H0460 Series

Part	Cable Type	Length	Length	Style	1st Connector	1st Connector Mounting Type	2nd Connector Mounting Type	Features	Frequency - Max [Max]	Color	1st Contact Gender	2nd Connector	Overall Impedance	2nd Contact Gender	Length
Amphenol Custom Cable Q-2H04600010.5M	RG-178	50 cm	19.69 "	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male
Amphenol Custom Cable Q-2H0460001060i	RG-178	1.5 m	5 '	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male	5 ft
Amphenol Custom Cable Q-2H0460001048i	RG-178	1200 mm	48 in	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male	4 ft
Amphenol Custom Cable Q-2H0460001006i	RG-178	152.4 mm	6 in	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male
Amphenol Custom Cable Q-2H0460001003i	RG-178	76.2 mm	3 in	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male
Amphenol Custom Cable Q-2H0460001009i	RG-178	228.6 mm	9 "	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male
Amphenol Custom Cable Q-2H0460001.75M	RG-178	750 mm	29.53 "	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male
Amphenol Custom Cable Q-2H0460001072i	RG-178	1.8 m	72 in	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male	6 ft
Amphenol Custom Cable Q-2H0460001001M	RG-178	1 m	39.4 in	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male	3.3 ft
Amphenol Custom Cable Q-2H0460001108i	RG-178	2.7 m	108 in	SMPM to N-Type	Right Angle SMPM Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	6000 MHz	Copper	Male	N-Type Plug	50 Ohms	Male	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 126.33
		25	$ 123.93
		50	$ 121.53
		100	$ 119.12
		250	$ 116.72

Description

General part information

Q-2H0460 Series

Cable Assembly Coaxial SMPM to N-Type RG-178 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
