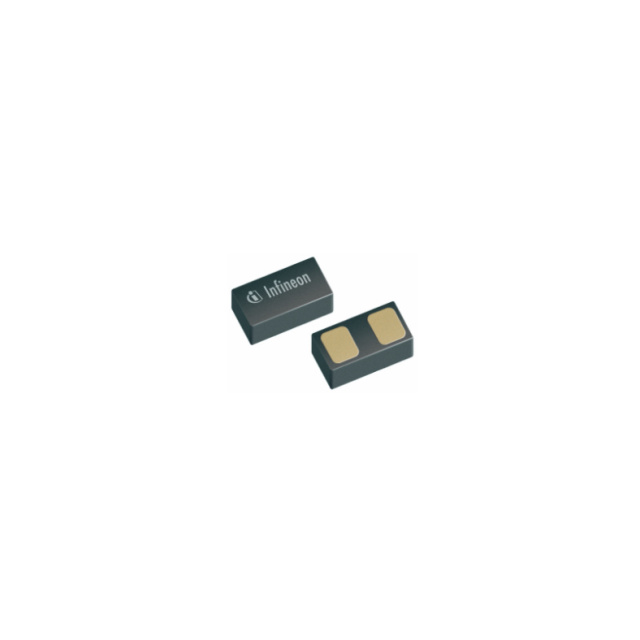

ESD113B102ELE6327XTMA1

NRND

Infineon Technologies

ESD SUPPRESSOR TVS BI-DIR 3.6V 2-PIN TSSLP T/R

Search across all available documentation for this part.

NRND

Infineon Technologies

ESD SUPPRESSOR TVS BI-DIR 3.6V 2-PIN TSSLP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	ESD113B102ELE6327XTMA1

Applications	HDMI
Bidirectional Channels [custom]	1
Capacitance @ Frequency	0.2 pF
Current - Peak Pulse (10/1000µs)	3 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1006 Metric)
Power - Peak Pulse	36 W
Power Line Protection	False
Supplier Device Package	PG-TSLP-2-20
Type	Zener
Voltage - Breakdown (Min) [Min]	4 V
Voltage - Clamping (Max) @ Ipp [Max]	8 V
Voltage - Reverse Standoff (Typ)	3.6 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Power - Peak Pulse	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Power Line Protection	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Package / Case	Voltage - Reverse Standoff (Typ)	Type	Applications
Infineon Technologies ESD113B102ELE6327XTMA1	125 ¯C	-55 °C	PG-TSLP-2-20	36 W	0.2 pF	3 A	1	4 V		8 V	Surface Mount	0402 (1006 Metric)	3.6 V	Zener	HDMI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bi-directional Ultra-low Capacitance ESD / Transient ProtectionDiode
