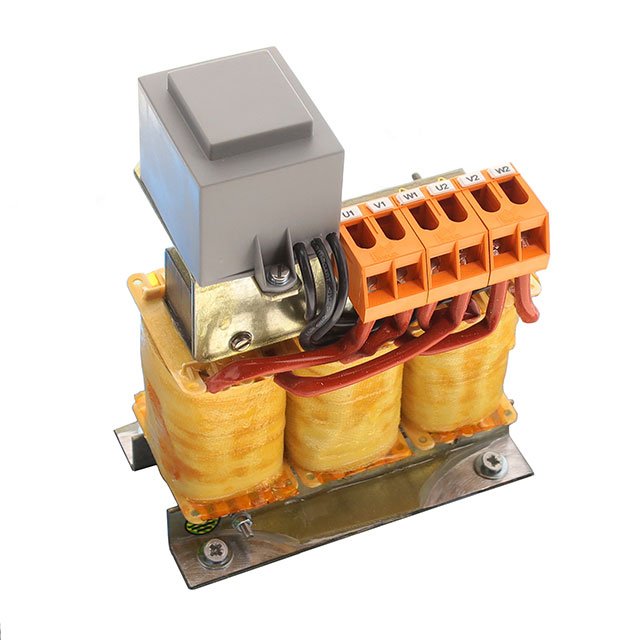

FN5040-4.5-82

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 4.5A CHASSIS MOUNT

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 4.5A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Termination Style	Current	Configuration	Inductance	Mounting Type	Applications
TE Connectivity Raychem Cable Protection FN5040-750-99	70 °C	-25 °C	Three Phase (Delta)	Terminal Block	750 A	Single Stage	120 µH	Chassis Mount	Regenerative Motor Drive
TE Connectivity Raychem Cable Protection FN5040-260-99	70 °C	-25 °C	Three Phase (Delta)	Terminal Block	260 A	Single Stage	200 µH	Chassis Mount	Regenerative Motor Drive
TE Connectivity Raychem Cable Protection FN5040-75-87	70 °C	-25 °C	Three Phase (Delta)	Terminal Block	75 A	Single Stage		Chassis Mount	Regenerative Motor Drive
TE Connectivity Raychem Cable Protection FN5040-880-99	70 °C	-25 °C	Three Phase (Delta)	Terminal Block	880 A	Single Stage	110 µH	Chassis Mount	Regenerative Motor Drive
TE Connectivity Raychem Cable Protection FN5040-660-99	70 °C	-25 °C	Three Phase (Delta)	Terminal Block	660 A	Single Stage	140 µH	Chassis Mount	Regenerative Motor Drive
TE Connectivity Raychem Cable Protection FN5040-180-99	70 °C	-25 °C	Three Phase (Delta)	Terminal Block	180 A	Single Stage	300 µH	Chassis Mount	Regenerative Motor Drive
TE Connectivity Raychem Cable Protection FN5040-4.5-82	70 °C	-25 °C	Three Phase (Delta)	Terminal Block	4.5 A	Single Stage	13 mH	Chassis Mount	Regenerative Motor Drive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Three Phase (Delta) EMC/EMI Line Filter 4.5 A Single Stage Terminal Block
