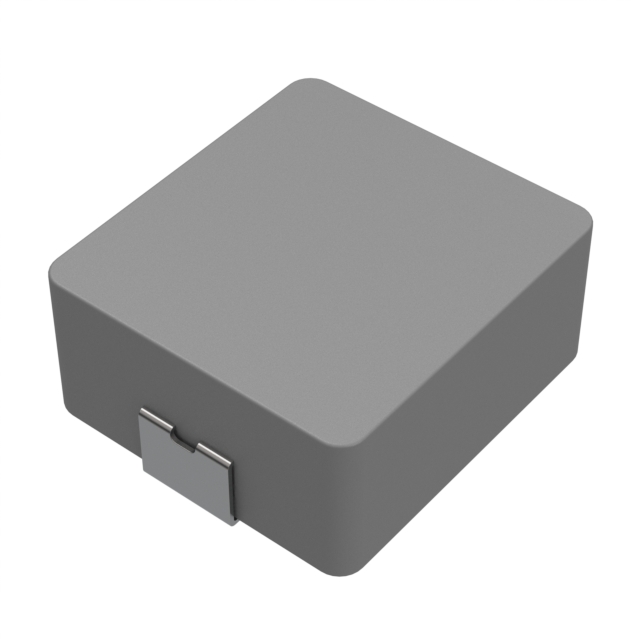

CMLB104T-150MS

Active

Delta Electronics/Cyntec

FIXED IND 15UH 6.3A 45 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

CMLB104T-150MS

Active

Delta Electronics/Cyntec

FIXED IND 15UH 6.3A 45 MOHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMLB104T-150MS	CMLB104T Series

Current - Saturation (Isat)	6.9 A	5 - 64 A
Current Rating (Amps)	6.3 A	4.4 - 41 A
DC Resistance (DCR)	45 mOhm	1.18 - 66 mOhm
DC Resistance (DCR)	-	0.55 - 91 mOhm
Height - Seated (Max) [Max]	0.157 in	0.157 in
Height - Seated (Max) [Max]	4 mm	4 mm
Inductance	15 µH	1 - 560 µH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Metal	Metal
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Shielded	Shielded
Size / Dimension [x]	0.427 "	0.427 - 0.439 "
Size / Dimension [x]	10.85 mm	10.85 - 11.15 mm
Size / Dimension [y]	10 mm	10 mm
Size / Dimension [y]	0.394 in	0.394 in
Tolerance	20 %	20 %

CMLB104T Series

FIXED IND 2.2UH 12A 7MOHM SMD

Part	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Saturation (Isat)	Shielding	Current Rating (Amps)	Mounting Type	Package / Case	Inductance	Inductance Frequency - Test	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLB104T-2R2MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.427 "	10.85 mm	16 A	Shielded	12 A	Surface Mount	Nonstandard	2.2 µH	100 kHz
Delta Electronics/Cyntec CMLB104T-R47MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.439 in	11.15 mm	40 A	Shielded	32 A	Surface Mount	Nonstandard	470 nH	100 kHz	1.5 mOhm
Delta Electronics/Cyntec CMLB104T-R22MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.439 in	11.15 mm	59 A	Shielded	36 A	Surface Mount	Nonstandard	220 nH	100 kHz		0.93 mOhm
Delta Electronics/Cyntec CMLB104T-1R0MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.439 in	11.15 mm	26 A	Shielded	19 A	Surface Mount	Nonstandard	1 µH	100 kHz		3.3 mOhm
Delta Electronics/Cyntec CMLB104T-150MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.427 "	10.85 mm	6.9 A	Shielded	6.3 A	Surface Mount	Nonstandard	15 µH	100 kHz	45 mOhm
Delta Electronics/Cyntec CMLB104T-R36MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.439 in	11.15 mm	42 A	Shielded	33 A	Surface Mount	Nonstandard	360 nH	100 kHz	1.18 mOhm
Delta Electronics/Cyntec CMLB104T-1R5MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.439 in	11.15 mm	18 A	Shielded	16 A	Surface Mount	Nonstandard	1.5 µH	100 kHz		4.2 mOhm
Delta Electronics/Cyntec CMLB104T-6R8MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.427 "	10.85 mm	9.5 A	Shielded	7.8 A	Surface Mount	Nonstandard	6.8 µH	100 kHz	24.5 mOhm
Delta Electronics/Cyntec CMLB104T-4R7MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.427 "	10.85 mm	13 A	Shielded	8.5 A	Surface Mount	Nonstandard	4.7 ÁH	100 kHz	20 mOhm
Delta Electronics/Cyntec CMLB104T-3R3MS	Metal	-55 °C	125 °C	20 %	0.157 in	4 mm	10 mm	0.394 in	0.427 "	10.85 mm	13.5 A	Shielded	10 A	Surface Mount	Nonstandard	3.3 µH	100 kHz	12 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.57
		10	$ 1.22
		25	$ 1.10
		50	$ 1.02
		100	$ 0.95
		250	$ 0.85
	Digi-Reel®	1	$ 1.57
		10	$ 1.22
		25	$ 1.10
		50	$ 1.02
		100	$ 0.95
		250	$ 0.85
	Tape & Reel (TR)	500	$ 0.79
		1000	$ 0.73
		1500	$ 0.70
		2500	$ 0.66
		3500	$ 0.64

Description

General part information

CMLB104T Series

15 µH Shielded Inductor 6.3 A 45mOhm Max Nonstandard
