60K47U-900N1

Obsolete

Rosenberger

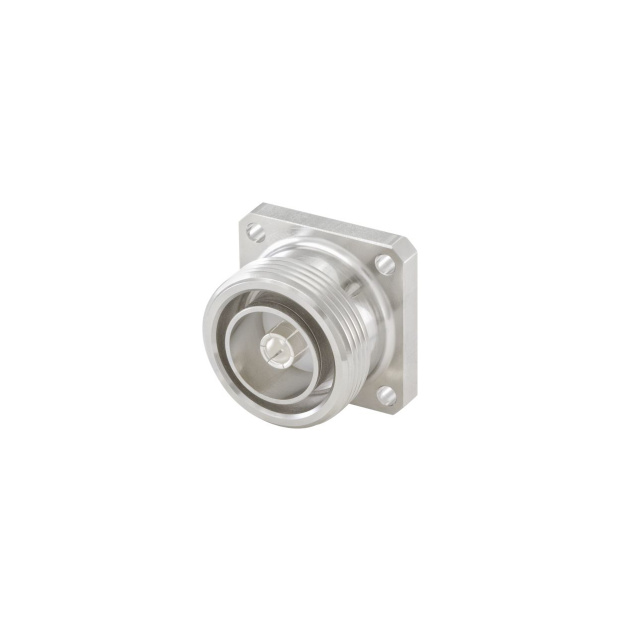

7/16 PANEL JACK

Search across all available documentation for this part.

Obsolete

Rosenberger

7/16 PANEL JACK

Technical Specifications

Parameters and characteristics for this part

Specification	60K47U-900N1

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Silver
Connector Style	7/16 DIN
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Frequency - Max [Max]	Connector Type	Connector Style	Mating Cycles	Center Contact Material	Impedance	Contact Termination	Voltage Rating	Body Finish	Center Contact Plating	Shield Termination	Dielectric Material	Body Material	Housing Color	Number of Ports
Rosenberger 60K47U-900N1	7.5 GHz	Female Socket Jack	7/16 DIN	500	Bronze	50 Ohms	Solder	500 V	White Bronze	Silver	Solder	Polytetrafluoroethylene (PTFE)	Brass	Silver	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7/16 DIN Connector Jack, Female Socket 50 Ohms Panel Mount Solder
