2966333

Active

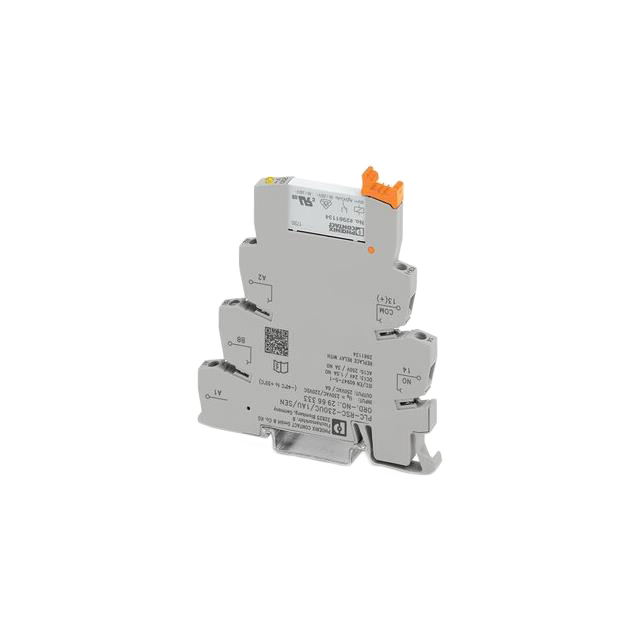

Phoenix Contact

RELAY GEN PURPOSE SPST 50MA 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 50MA 230V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2966333	29663 Series

Approval Agency	cULus, DNV, UL, EAC	cULus, DNV, UL, EAC
Coil Current	3.2 mA	3.2 - 9 mA
Coil Resistance	71.88 kOhms	2.67 - 71.88 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	230 VAC	24 - 230 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)	Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	50 mA	50 mA
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	7 ms	5 - 7 ms
Operating Temperature [Max]	55 °C	55 - 60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	15 ms	8 - 15 ms
Switching Voltage	36 VDC, 30 VAC	30 - 36 VDC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE SPST 50MA 24V

Part	Release Time	Features	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Approval Agency	Mounting Type	Relay Type	Coil Current	Coil Type	Contact Rating (Current)	Coil Resistance	Termination Style	Switching Voltage	Coil Voltage	Operate Time
Phoenix Contact 2966317	8 ms	Lighted Indicator, Socket Included	SPST-NO (1 Form A)	-25 °C	60 °C	Gold (Au), Silver Tin Oxide (AgSnO)	cULus, DNV, EAC, UL	DIN Rail	General Purpose	9 mA	Non Latching	50 mA	2.67 kOhms	Screw Terminal	30 VAC, 36 VDC	24 VDC	5 ms
Phoenix Contact 2966333	15 ms	Lighted Indicator, Socket Included	SPST-NO (1 Form A)	-25 °C	55 °C	Gold (Au), Silver Tin Oxide (AgSnO)	cULus, DNV, EAC, UL	DIN Rail	General Purpose	3.2 mA	Non Latching	50 mA	71.88 kOhms	Screw Terminal	30 VAC, 36 VDC	230 VAC	7 ms
Phoenix Contact 2966320	15 ms	Lighted Indicator, Socket Included	SPST-NO (1 Form A)	-25 °C	55 °C	Gold (Au), Silver Tin Oxide (AgSnO)	cULus, DNV, EAC, UL	DIN Rail	General Purpose	3.5 mA	Non Latching	50 mA	34.29 kOhms	Screw Terminal	30 VAC, 36 VDC	120 VAC, 120 VDC	6 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 33.53

General part information

General Purpose Relay SPST-NO (1 Form A) DIN Rail
