RB2-1A-DC-2-GL

Active

Switch Components

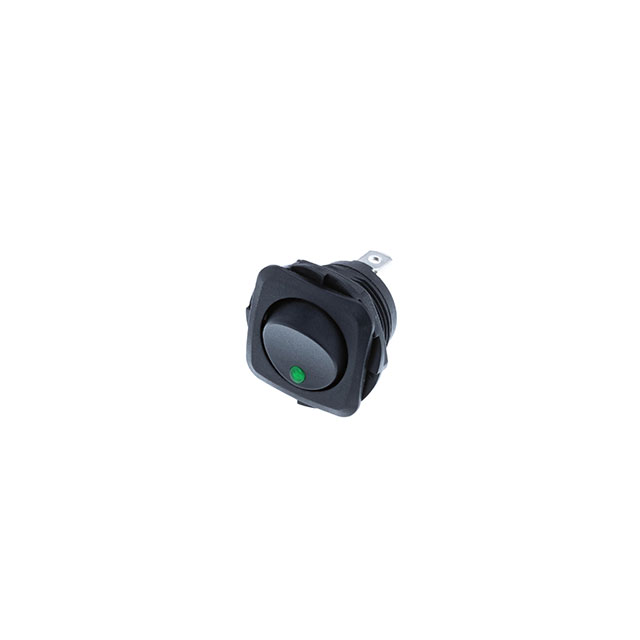

SWITCH ROCKER SPST 20A 14V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST 20A 14V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RB2-1A-DC-2-GL	RB2-1A Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round - Illuminated	Round - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	LED, Green	Red, LED, Amber, Green
Illumination Voltage (Nominal)	14 VDC	14 VDC
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - DC	14 V	14 V

SWITCH ROCKER SPST 20A 14V

Part	Actuator Marking	Actuator Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Panel Cutout Dimensions [diameter]	Termination Style	Illumination Type, Color	Color - Actuator/Cap	Voltage Rating - DC	Electrical Life	Illumination Voltage (Nominal)	Switch Function	Circuit	Current Rating (Amps)
Switch Components RB2-1A-DC-2-RL	No Marking	Round - Illuminated	Panel Mount, Threaded Body with Nut	85 °C	-20 C	10000 Steps	20.2 mm	Quick Connect - 0.187" (4.7mm)	LED, Red	Black	14 V	6000 Cycles	14 VDC	On-Off	SPST	20 A
Switch Components RB2-1A-DC-2-AL	No Marking	Round - Illuminated	Panel Mount, Threaded Body with Nut	85 °C	-20 C	10000 Steps	20.2 mm	Quick Connect - 0.187" (4.7mm)	Amber, LED	Black	14 V	6000 Cycles	14 VDC	On-Off	SPST	20 A
Switch Components RB2-1A-DC-2-GL	No Marking	Round - Illuminated	Panel Mount, Threaded Body with Nut	85 °C	-20 C	10000 Steps	20.2 mm	Quick Connect - 0.187" (4.7mm)	Green, LED	Black	14 V	6000 Cycles	14 VDC	On-Off	SPST	20 A
