AYF353925A

Obsolete

Panasonic Electric Works

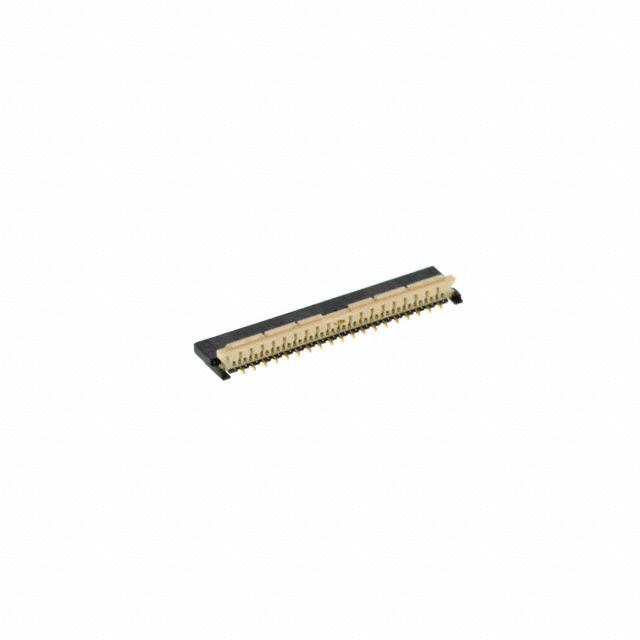

CONN FPC TOP 39POS 0.3MM R/A

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN FPC TOP 39POS 0.3MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF353925A

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	200 mA
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.023 in
Height Above Board	0.59 mm
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	39
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	50 V

Part	Cable End Type	Termination	Mating Cycles	Connector/Contact Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Material Flammability Rating	Actuator Material	Locking Feature	FFC, FCB Thickness	Voltage Rating	Height Above Board	Height Above Board	Mounting Type	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Housing Material	Contact Material
Panasonic Electric Works AYF353925A	Tapered	Solder	20	Contacts Top	200 mA	85 °C	-55 °C	FPC	UL94 V-0	Liquid Crystal Polymer (LCP)	Backlock Flip Lock	0.2 mm	50 V	0.023 in	0.59 mm	Surface Mount Right Angle	39	Gold	0.012 in	0.3 mm	Liquid Crystal Polymer (LCP)	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

39 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
