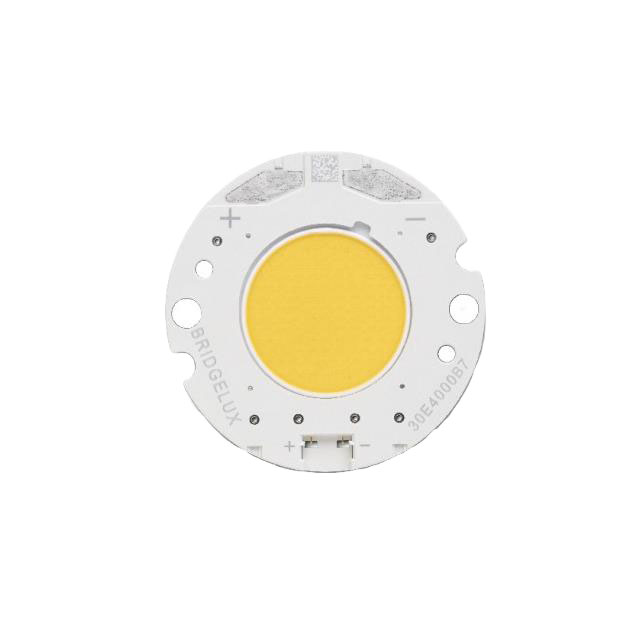

BXRC-40E4000-C-73

Active

BRIDGELUX

LED, NEUTRAL WHITE, 80 CRI RATING, 41W, 4000LM, 1.17A, 120°, 35V, 4000K, ROUND FLAT TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

BXRC-40E4000-C-73

Active

BRIDGELUX

LED, NEUTRAL WHITE, 80 CRI RATING, 41W, 4000LM, 1.17A, 120°, 35V, 4000K, ROUND FLAT TOP

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.96
		50	$ 11.53
		100	$ 10.68
Newark	Each	1	$ 16.73
		10	$ 16.20
		25	$ 16.05
		50	$ 15.90
		100	$ 15.01

Description

General part information

BXRC-40 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 Vero® 18 Array White, Neutral Round

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Specification	BXRC-40E4000-C-73	BXRC-40 Series

CCT (K)	4000 K	4000 K
Color	Neutral, White	Neutral, White
Configuration	Round	Round, Starboard
CRI (Color Rendering Index)	80	70 - 93
Current - Max [Max]	2.34 A	1 - 900 mA
Current - Test	-	1.05 - 900 mA
Features	With Connector	With Connector
Height [z]	1.9 mm	1.8 - 3.6 mm
Lens Type	Flat	Flat, Domed
Light Emitting Surface (LES) [diameter]	18.4 mm	9.9 - 29.2 mm
Lumens/Watt @ Current - Test	148 lm/W	90 - 199 lm/W
Luminous Flux @ Current/Temperature	5887 lm	861 - 19680 lm
Size / Dimension	-	19.9 mm
Size / Dimension	-	19.9 mm
Size / Dimension [diameter]	36.2 mm	20 - 49.2 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	-	120 °
Voltage - Forward (Vf) (Typ)	34.1 V	24.9 - 69.4 V

Part	CCT (K)	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	Temperature - Test	CRI (Color Rendering Index)	Viewing Angle	Height [z]	Type	Lens Type	Size / Dimension [diameter]	Configuration	Voltage - Forward (Vf) (Typ)	Current - Test	Current - Max [Max]	Color	Lumens/Watt @ Current - Test	Features
BRIDGELUX BXRC-40G1000-B-72-SE	4000 K	9.9 mm	1133 lm	85 °C	90	120 °	3.6 mm	Chip On Board (COB)	Flat	30.8 mm	Round	33.8 V	270 mA	540 mA	Neutral, White
BRIDGELUX BXRC-40A10K1-D-73	4000 K	29.2 mm	9799 lm	85 °C	93	120 °	1.9 mm	Chip On Board (COB)	Flat	49.2 mm	Round	36.3 V	2.1 A	4.2 A	Neutral, White	129 lm/W	With Connector
BRIDGELUX BXRC-40E4000-F-Z3	4000 K	18.4 mm	3511 lm	85 °C	80	120 °	1.9 mm	Chip On Board (COB)	Flat	36.2 mm	Round	28.8 V	1.05 A	2.1 A	Neutral, White	116 lm/W	With Connector
BRIDGELUX BXRC-40G2000-C-02	4000 K	13.2 mm	1810 lm		90	120 °	1.9 mm	Chip On Board (COB)	Flat	36.2 mm	Round	32.5 V	500 mA	1.05 A	Neutral, White	111 lm/W	With Connector
BRIDGELUX BXRC-40G10K0-L-03	4000 K	29.2 mm	9060 lm		90	120 °	1.9 mm	Chip On Board (COB)	Flat	49.2 mm	Round	38.6 V	2.1 A	4.2 A	Neutral, White	112 lm/W	With Connector
BRIDGELUX BXRC-40E1000-C-83	4000 K	10 mm	1689 lm		80	120 °	1.8 mm	Chip On Board (COB)	Flat	20 mm	Starboard	30.7 V	300 mA	1 A	Neutral, White	183 lm/W
BRIDGELUX BXRC-40E2000-C-72	4000 K	13.2 mm	3170 lm	85 °C	80		1.9 mm	Chip On Board (COB)	Flat	36.2 mm	Round	34.1 V	630 mA	1.26 A	Neutral, White	148 lm/W	With Connector
BRIDGELUX BXRC-40E4000-C-73	4000 K	18.4 mm	5887 lm	85 °C	80		1.9 mm	Chip On Board (COB)	Flat	36.2 mm	Round	34.1 V		2.34 A	Neutral, White	148 lm/W	With Connector
BRIDGELUX BXRC-40G4000-D-73-SE	4000 K	18.4 mm	3719 lm	85 °C	90	120 °	3.6 mm	Chip On Board (COB)	Flat	36.2 mm	Round	28.3 V	1.05 A	2.1 A	Neutral, White	125 lm/W
BRIDGELUX BXRC-40G4000-B-72	4000 K	18.4 mm	3875 lm	85 °C	90		1.9 mm	Chip On Board (COB)	Flat	36.2 mm	Round	34.1 V	900 mA	1.8 A	Neutral, White	126 lm/W	With Connector
